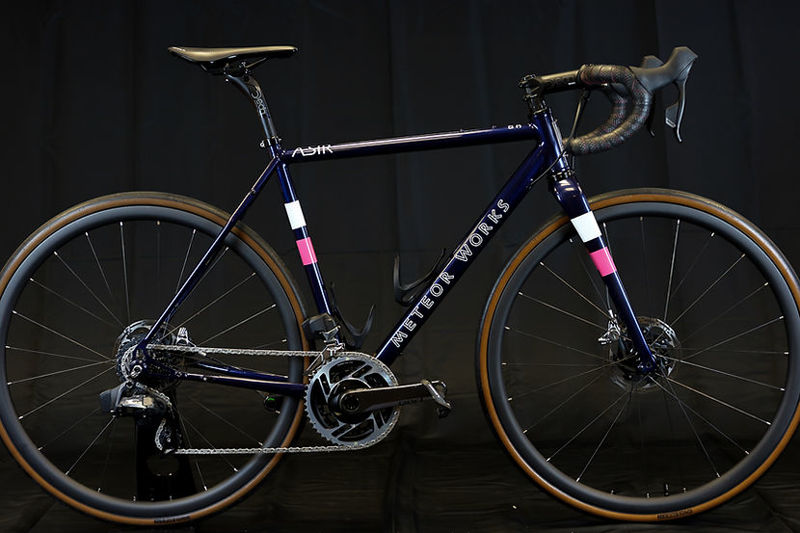

2023 Meteor Works AESIR geometry
Full frame geometry for the 2023 Meteor Works AESIR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|
| 48 | 530 | 365 | 74 | 71 | 480 | 70 | 420 |
| 50 | 540 | 370 | 74 | 71 | 500 | 70 | 420 |
| 52 | 550 | 373 | 74 | 71 | 520 | 70 | 420 |
| 54 | 560 | 378 | 73.5 | 71.5 | 540 | 70 | 420 |
| 56 | 570 | 385 | 73.5 | 71.5 | 560 | 70 | 420 |
| 58 | 580 | 393 | 73 | 71.5 | 580 | 70 | 420 |
| 60 | 590 | 400 | 73 | 72 | 600 | 70 | 420 |
| 62 | 600 | 405 | 73 | 72.5 | 620 | 70 | 420 |
All measurements in millimetres unless marked (°) for angles.
