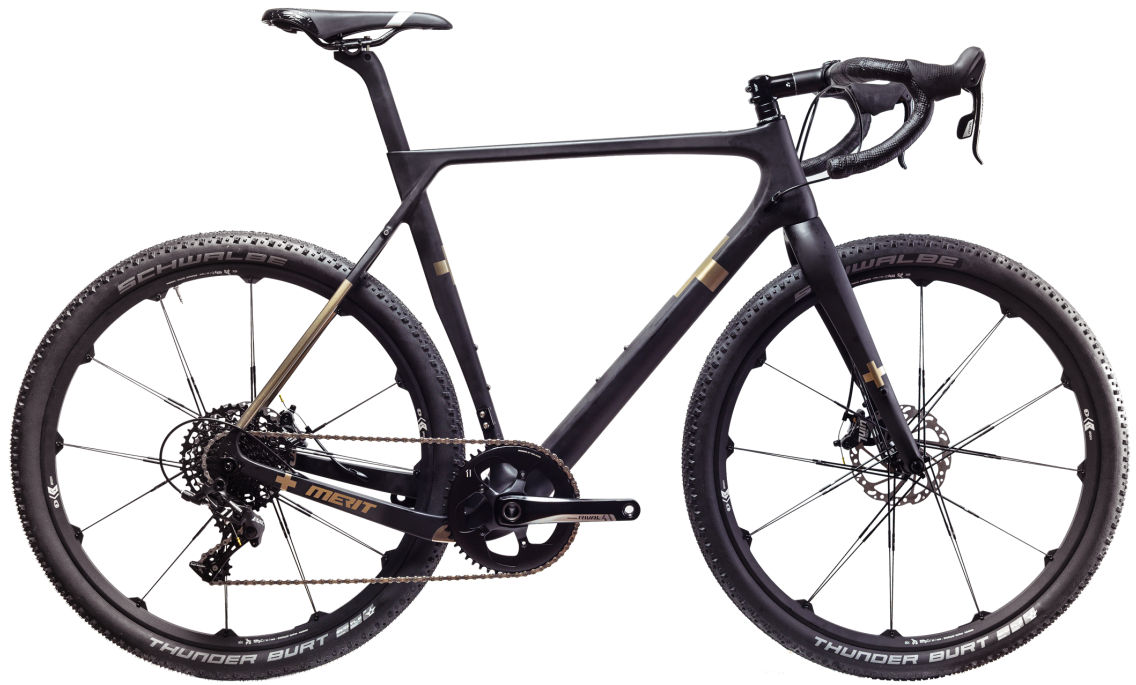

2017 Merit Plus geometry
Full frame geometry for the 2017 Merit Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 553 | 375 | 72.5 | 71 | 130 | 549 | 530 | 828 | 70 | 420 | 1008 | 45 | 73 |
| L | 582 | 386 | 72.5 | 72.5 | 155 | 570 | 560 | 858 | 70 | 420 | 1014 | 45 | 63 |
| XL | 606 | 400 | 72.5 | 72.5 | 180 | 591 | 590 | 886 | 70 | 420 | 1032 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
