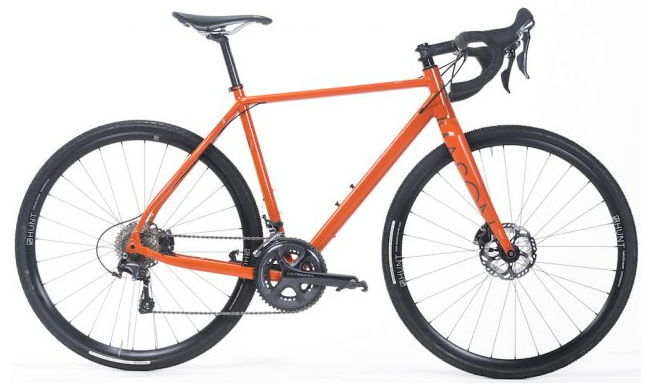

2017 Mason Bokeh geometry
Full frame geometry for the 2017 Mason Bokeh, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 538 | 364 | 74 | 70 | 115 | 520 | 500 | 764 | 75 | 590 | 435 | 1014 | 50 | 75 |
| 52 | 554 | 374 | 74 | 70.5 | 130 | 536 | 520 | 782 | 75 | 602 | 435 | 1022 | 50 | 72 |
| 54 | 568 | 376 | 73 | 71 | 145 | 551 | 540 | 799 | 75 | 604 | 435 | 1028 | 50 | 69 |
| 56 | 580 | 383 | 73 | 71.5 | 155 | 561 | 560 | 815 | 75 | 610 | 435 | 1034 | 50 | 65 |
| 58 | 588 | 395 | 72.5 | 72 | 165 | 581 | 580 | 831 | 75 | 620 | 435 | 1045 | 50 | 62 |
| 60 | 607 | 399 | 72.5 | 72 | 185 | 591 | 600 | 850 | 75 | 630 | 435 | 1055 | 50 | 62 |
| 62 | 631 | 401 | 72.5 | 72 | 210 | 600 | 620 | 872 | 70 | 640 | 435 | 1066 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
