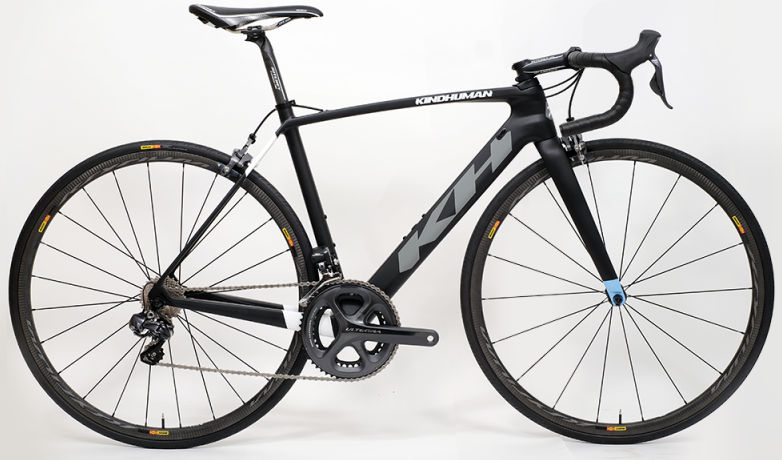

2016 Kindhuman Kampionne MKII geometry
Full frame geometry for the 2016 Kindhuman Kampionne MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 490 | 379 | 74 | 71 | 95 | 515 | 470 | 754 | 67 | 408 | 978 | 43 |
| XS | 490 | 373 | 75 | 71 | 95 | 500 | 440 | 737 | 67 | 408 | 970 | 43 |
| M | 510 | 384 | 74 | 72 | 113 | 530 | 500 | 779 | 67 | 408 | 982 | 43 |
| L | 542 | 389 | 73 | 73 | 145 | 550 | 540 | 816 | 68 | 408 | 984 | 43 |
| XL | 573 | 405 | 73 | 73 | 175 | 575 | 570 | 848 | 68 | 408 | 1007 | 43 |
All measurements in millimetres unless marked (°) for angles.
