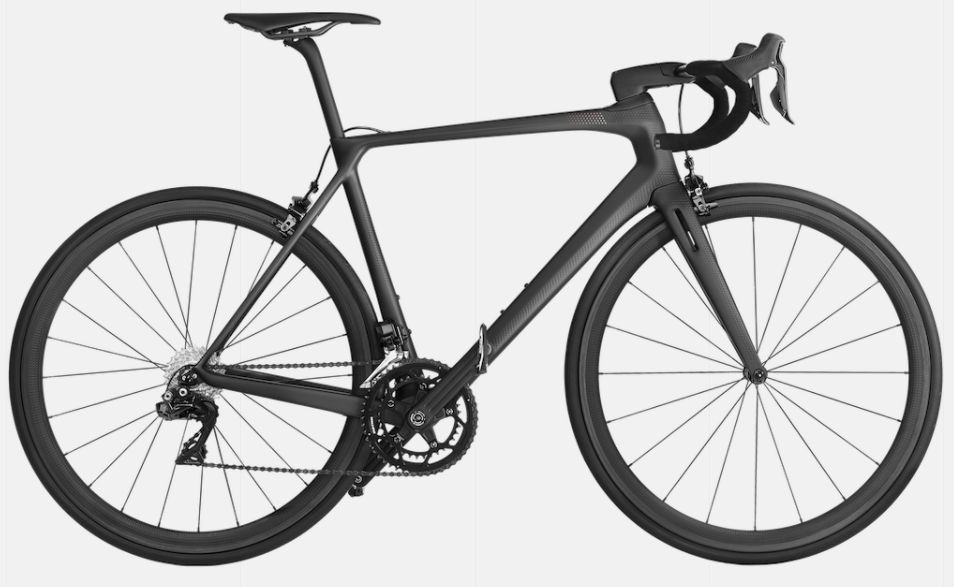

2017 Heroin H1 Ltd geometry
Full frame geometry for the 2017 Heroin H1 Ltd, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 513 | 375 | 75 | 71 | 115 | 515 | 450 | 750 | 68 | 405 | 973 |
| M | 536 | 382 | 74 | 72 | 136 | 537 | 475 | 775 | 68 | 406 | 980 |
| ML | 558 | 389 | 73.5 | 72.5 | 159 | 555 | 520 | 811 | 68 | 407 | 991 |
| L | 578 | 395 | 73 | 73 | 178 | 572 | 530 | 826 | 68 | 409 | 1000 |
| XL | 599 | 402 | 73 | 73 | 200 | 585 | 560 | 853 | 68 | 409 | 1014 |
All measurements in millimetres unless marked (°) for angles.
