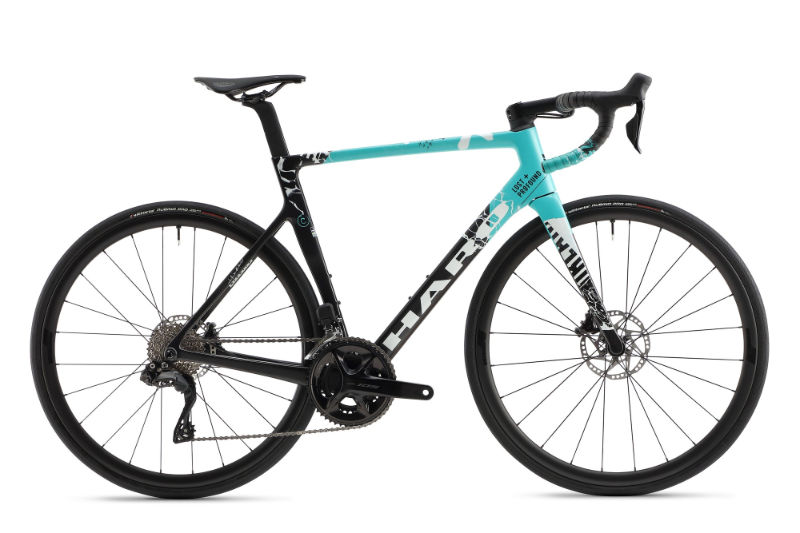

2024 Haro Rivette geometry
Full frame geometry for the 2024 Haro Rivette, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 513 | 374 | 74.6 | 70.9 | 110 | 518 | 430 | 721 | 74 | 408 | 983 | 53 | 62.7 |
| 51 | 533 | 383 | 74.3 | 71.2 | 130 | 533 | 470 | 753 | 74 | 408 | 997 | 53 | 60.4 |
| 54 | 553 | 387 | 74.3 | 71.2 | 153 | 549 | 510 | 786 | 72 | 408 | 1009 | 53 | 60.7 |
| 56 | 574 | 393 | 73.3 | 73 | 164 | 565 | 536 | 809 | 72 | 408 | 995 | 45 | 57.8 |
| 58 | 594 | 398 | 72.9 | 73 | 188 | 581 | 558 | 832 | 69 | 408 | 1008 | 45 | 57.8 |
| 61 | 624 | 406 | 72.3 | 73 | 220 | 605 | 590 | 862 | 69 | 408 | 1025 | 45 | 57.8 |
All measurements in millimetres unless marked (°) for angles.
