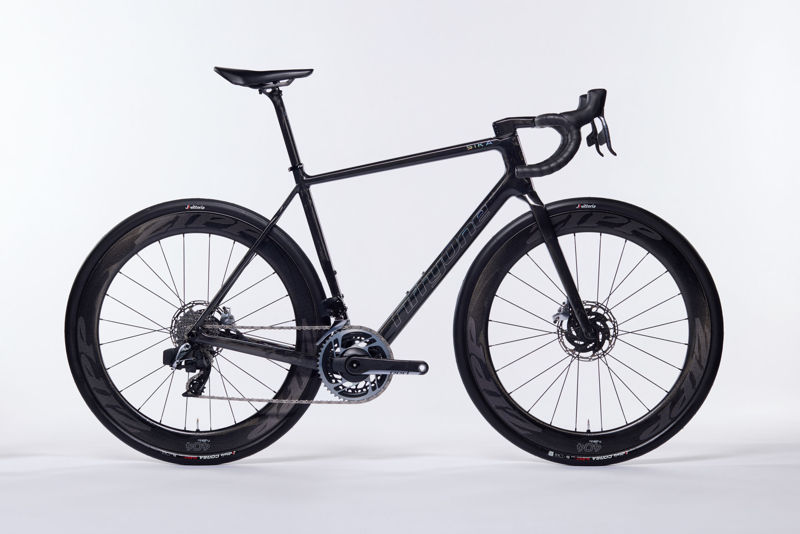

2024 FiftyOne Sika geometry
Full frame geometry for the 2024 FiftyOne Sika, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 360 | 74 | 70.8 | 93.2 | 510 | 743 | 78 | 577 | 418 | 982 | 56 |
| S | 537 | 370 | 74 | 71 | 115.7 | 526 | 763.2 | 78 | 592 | 418 | 998 | 56 |
| M | 555 | 380 | 73.5 | 71.2 | 134 | 546 | 782.2 | 78 | 607 | 420 | 1014 | 56 |
| L | 578 | 390 | 73.5 | 72.6 | 150 | 562 | 803.2 | 78 | 602 | 420 | 1010 | 48 |
| XL | 603 | 400 | 73 | 72.8 | 175.5 | 584 | 824.8 | 78 | 618 | 422 | 1027 | 48 |
| XXL | 628 | 410 | 73 | 72.8 | 201.6 | 602 | 846.4 | 78 | 635 | 422 | 1045 | 48 |
All measurements in millimetres unless marked (°) for angles.
