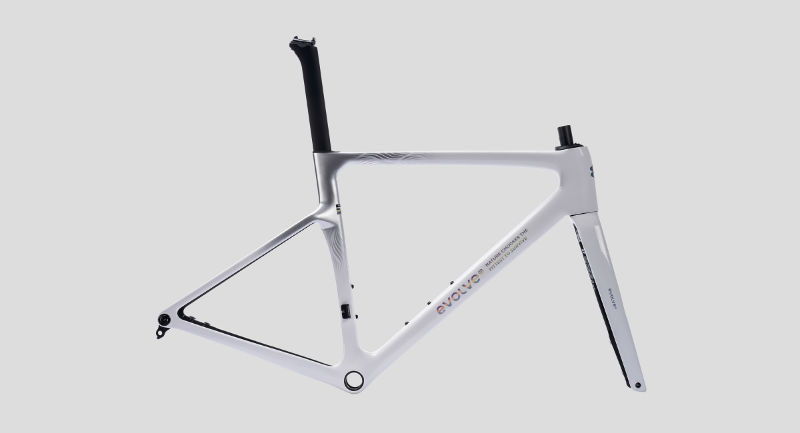

2025 Evolve Cima geometry
Full frame geometry for the 2025 Evolve Cima, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 506 | 371 | 75 | 71.1 | 103 | 507 | 443 | 727 | 74 | 571 | 410 | 969 | 44 | 70 |
| S | 528 | 378 | 75 | 72.2 | 122 | 519 | 465 | 749 | 74 | 573 | 410 | 973 | 44 | 63 |
| M | 544 | 384 | 74 | 73 | 138 | 540 | 481 | 767 | 72 | 579 | 410 | 978 | 44 | 58 |
| ML | 562 | 390 | 74 | 73.8 | 153 | 551 | 499 | 785 | 72 | 579 | 410 | 978 | 40.2 | 57 |
| L | 580 | 397 | 73.5 | 73.8 | 173 | 569 | 517 | 805 | 70 | 591 | 410 | 991 | 40.2 | 57 |
| XL | 608 | 406 | 73.5 | 73.8 | 203 | 586 | 540 | 829 | 70 | 608 | 410 | 1008 | 40.2 | 57 |
All measurements in millimetres unless marked (°) for angles.
