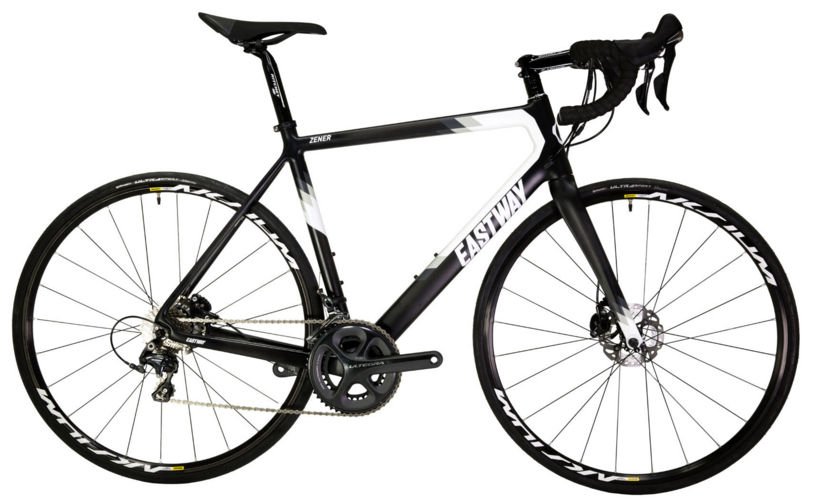

2015 Eastway Zener Disc geometry
Full frame geometry for the 2015 Eastway Zener Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 507 | 375 | 75 | 71 | 110 | 510 | 450 | 73 | 581 | 408 | 978 |
| 52 | 520 | 376 | 74.5 | 71.5 | 120 | 520 | 480 | 73 | 583 | 408 | 980 |
| 54 | 542 | 380 | 74 | 72.5 | 140 | 535 | 510 | 73 | 585 | 408 | 981 |
| 56 | 568 | 382 | 73.5 | 72.5 | 170 | 550 | 540 | 70 | 595 | 408 | 993 |
| 58 | 601 | 387 | 73 | 72.5 | 205 | 571 | 570 | 70 | 611 | 408 | 1009 |
| 60 | 630 | 392 | 73 | 72.5 | 235 | 585 | 600 | 70 | 625 | 408 | 1023 |
All measurements in millimetres unless marked (°) for angles.
