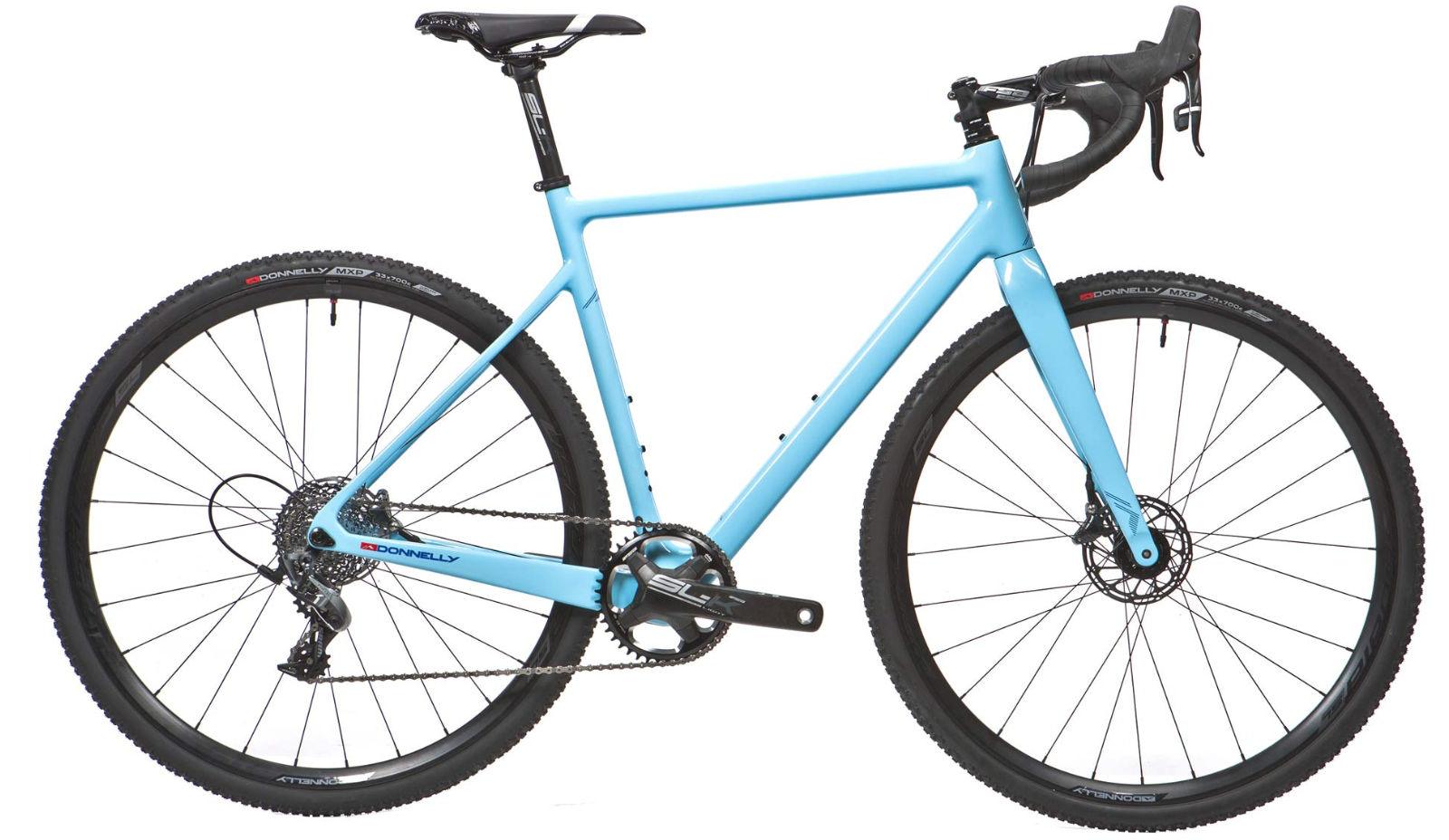

2018 Donnelly C//C geometry
Full frame geometry for the 2018 Donnelly C//C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 376 | 75 | 71 | 110 | 520 | 480 | 746 | 64 | 590 | 425 | 1007 | 45 | 72 |
| S | 553 | 376 | 74 | 71.5 | 130 | 535 | 510 | 787 | 64 | 590 | 425 | 1007 | 45 | 69 |
| M | 564 | 378 | 73.5 | 72 | 140 | 545 | 530 | 801 | 64 | 592 | 425 | 1008 | 45 | 66 |
| L | 583 | 381 | 73 | 72 | 160 | 560 | 550 | 820 | 64 | 601 | 425 | 1018 | 45 | 66 |
| XL | 602 | 391 | 73 | 72 | 180 | 575 | 570 | 836 | 64 | 616 | 425 | 1033 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
