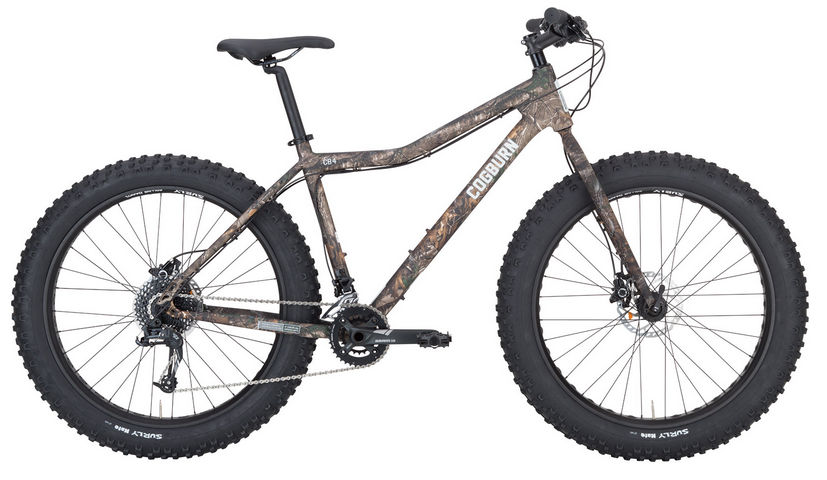

2015 Cogburn CB4 geometry
Full frame geometry for the 2015 Cogburn CB4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 403 | 73 | 69.5 | 130 | 589 | 406 | 678 | 66 | 663 | 460 | 1115 | 46 |
| L | 630 | 427 | 73 | 69.5 | 150 | 620 | 483 | 741 | 66 | 696 | 460 | 1148 | 46 |
All measurements in millimetres unless marked (°) for angles.
