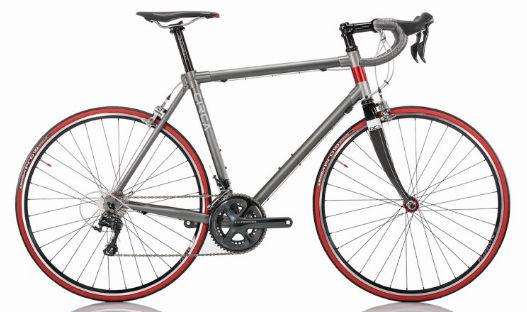

2017 Circa Standard Road geometry
Full frame geometry for the 2017 Circa Standard Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 548 | 355 | 74 | 72 | 124 | 531 | 761 | 75 | 445 | 1011 |
| XS | 548 | 372 | 74 | 72 | 124 | 510 | 708 | 75 | 445 | 1011 |
| M | 573 | 362 | 73.5 | 72 | 150 | 551 | 783 | 75 | 445 | 1027 |
| L | 596 | 365 | 73 | 72 | 174 | 566 | 806 | 75 | 445 | 1037 |
| XL | 616 | 379 | 73 | 72 | 197 | 586 | 824 | 75 | 445 | 1061 |
All measurements in millimetres unless marked (°) for angles.
