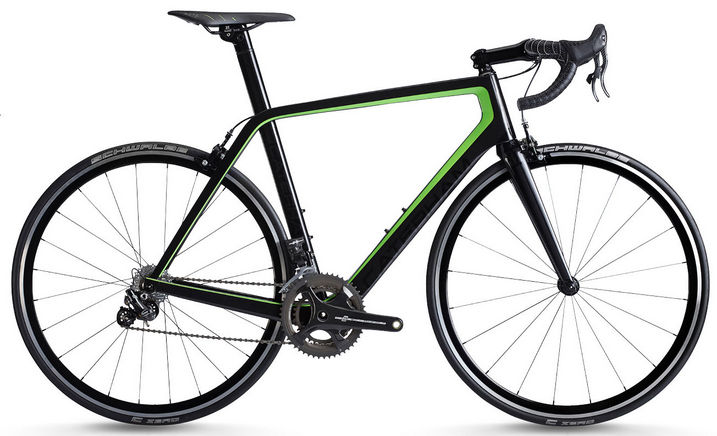

2015 Caterham Duo Cali geometry
Full frame geometry for the 2015 Caterham Duo Cali, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 518 | 374 | 74.5 | 71.8 | 115 | 518 | 74 | 574 | 408 | 970 | 46 |
| 52 | 534 | 380 | 74 | 72.8 | 130 | 533 | 72 | 576 | 408 | 973 | 46 |
| 56 | 562 | 385 | 73.3 | 73.5 | 160 | 554 | 70 | 582 | 408 | 980 | 46 |
| 60 | 593 | 401 | 73 | 73.8 | 195 | 582 | 70 | 604 | 408 | 1002 | 46 |
All measurements in millimetres unless marked (°) for angles.
