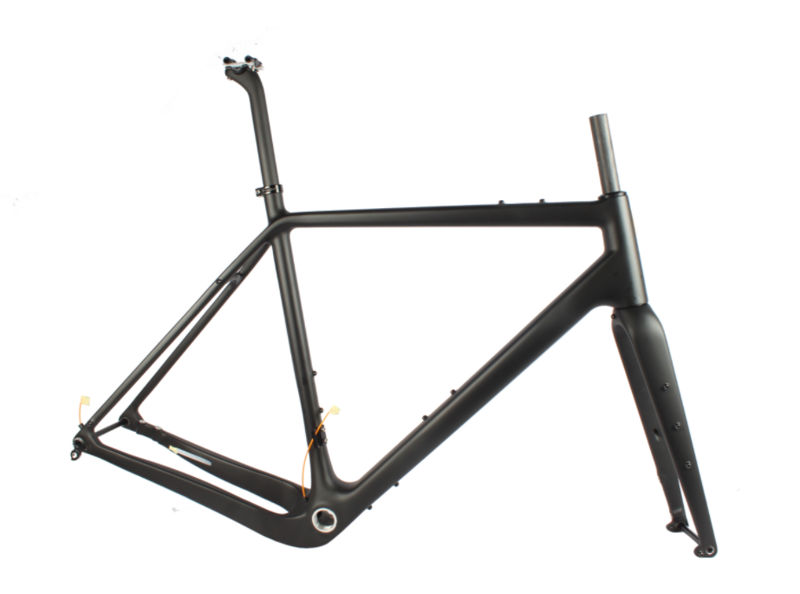

2020 Carbonda CFR 696 geometry
Full frame geometry for the 2020 Carbonda CFR 696, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 490 | 536.6 | 371 | 74.5 | 70.5 | 120 | 520 | 490 | 594.2 | 435 | 1020 | 50 |
| 520 | 557.4 | 375 | 74 | 71 | 140 | 535 | 520 | 595.3 | 435 | 1025 | 50 |
| 540 | 568 | 376 | 73 | 71.5 | 150 | 550 | 540 | 600 | 435 | 1025 | 50 |
| 560 | 589.8 | 384.6 | 73 | 72 | 170 | 565 | 560 | 610.6 | 435 | 1038.7 | 50 |
| 580 | 608.9 | 394 | 73 | 72 | 190 | 580 | 580 | 626 | 435 | 1052 | 50 |
| 610 | 628 | 403 | 73 | 72 | 210 | 595 | 610 | 641 | 435 | 1067.5 | 50 |
All measurements in millimetres unless marked (°) for angles.
