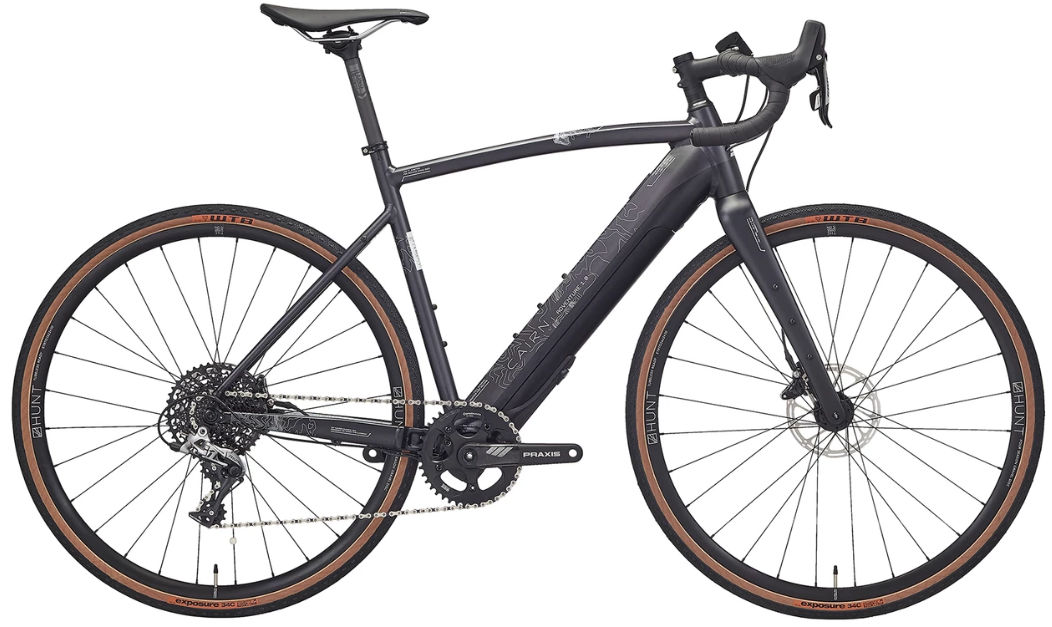

2019 Cairn Adventure 1.0 geometry
Full frame geometry for the 2019 Cairn Adventure 1.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 552 | 370 | 73.5 | 71 | 130 | 533 | 510 | 806 | 70 | 591 | 430 | 1010 | 48 | 72 |
| M | 571 | 384 | 73 | 71 | 150 | 558 | 540 | 832 | 70 | 611 | 430 | 1031 | 48 | 72 |
| L | 593 | 393 | 73 | 72 | 170 | 574 | 560 | 854 | 70 | 618 | 430 | 1037 | 48 | 65 |
| XL | 608 | 403 | 73 | 72 | 185 | 589 | 580 | 871 | 70 | 632 | 430 | 1052 | 48 | 65 |
All measurements in millimetres unless marked (°) for angles.
