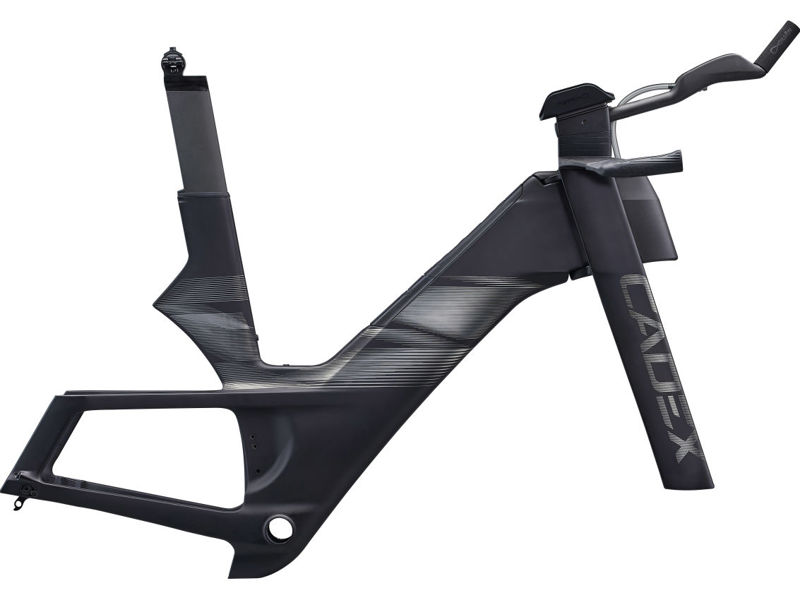

2022 Cadex Cadex Tri geometry
Full frame geometry for the 2022 Cadex Cadex Tri, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 483 | 390 | 76 | 71 | 70 | 475 | 440 | 620 | 80 | 405 | 968 | 40 | 76.1 |
| XS | 513 | 405 | 76 | 73 | 95 | 495 | 475 | 650 | 80 | 405 | 976 | 40 | 63.3 |
| S | 534 | 426 | 76 | 73 | 120 | 520 | 510 | 700 | 77 | 405 | 1005 | 40 | 63.3 |
| M | 555 | 452 | 76 | 73 | 145 | 550 | 545 | 750 | 74 | 405 | 1039 | 40 | 63.3 |
| L | 579 | 478 | 76 | 73 | 170 | 580 | 580 | 800 | 74 | 405 | 1072 | 40 | 63.3 |
All measurements in millimetres unless marked (°) for angles.
