2015 Bulls · MD

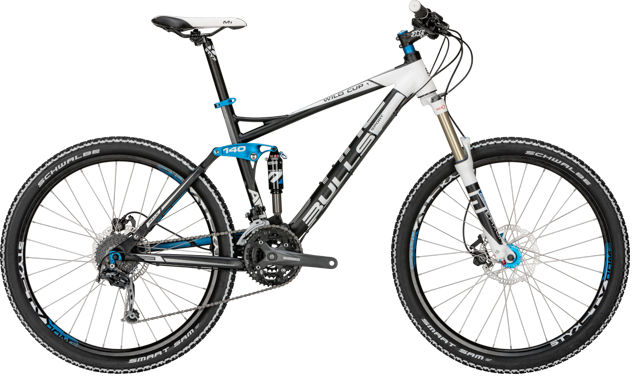

2015 Bulls Wild Cup MK I geometry
Full frame geometry for the 2015 Bulls Wild Cup MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/43 | 573 | 400 | 73 | 68 | 100 | 575 | 430 | 5 | 677 | 455 | 1132 | 42 |
| M/48 | 591 | 414 | 73 | 68 | 120 | 595 | 480 | 5 | 699 | 455 | 1154 | 42 |
| L/53 | 615 | 432 | 73 | 68 | 145 | 620 | 530 | 5 | 726 | 455 | 1181 | 42 |
All measurements in millimetres unless marked (°) for angles.
