2017 Bulls · MH

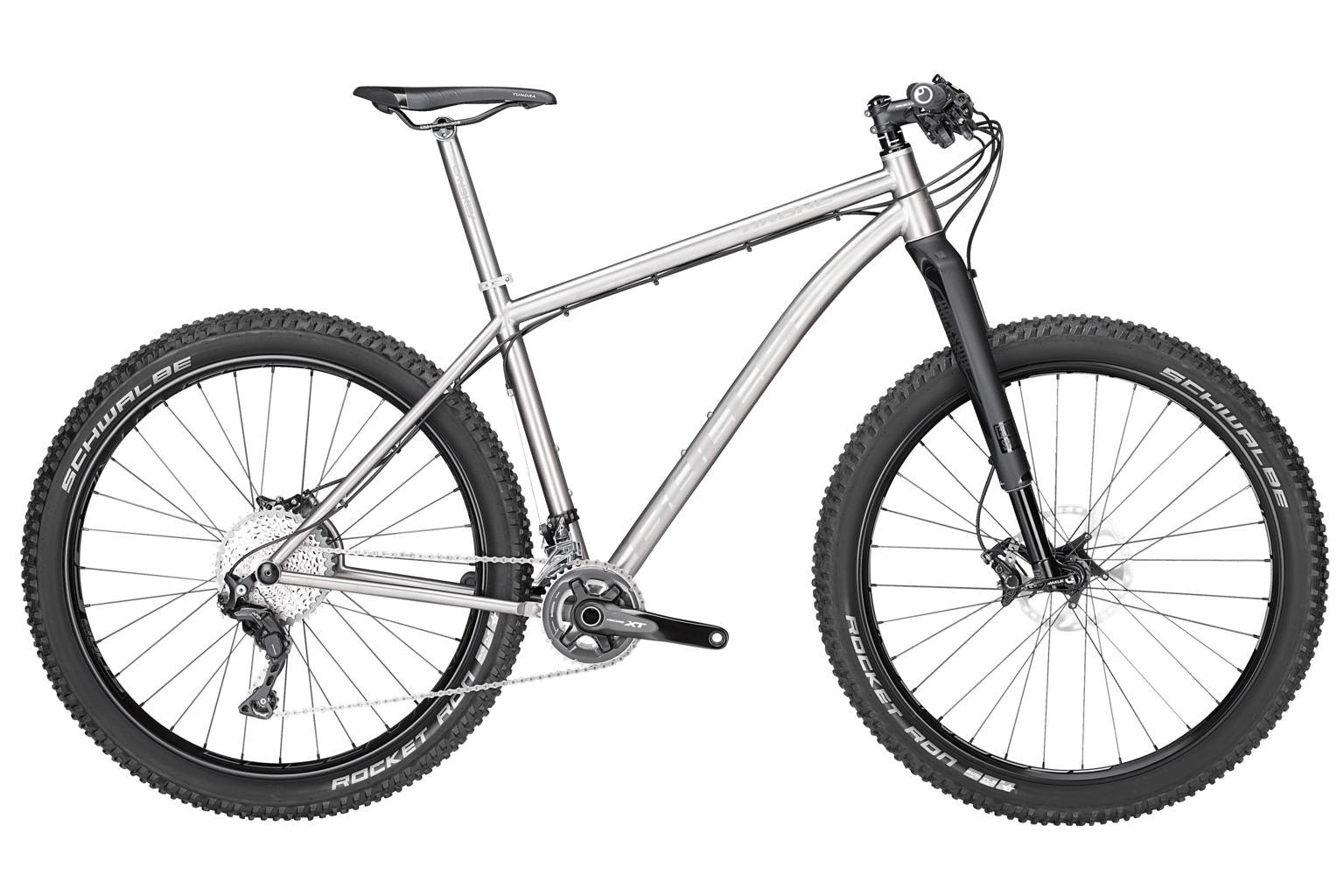

2017 Bulls Tirone 27.5 geometry
Full frame geometry for the 2017 Bulls Tirone 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 625 | 404 | 73 | 71 | 100 | 595 | 440 | 60 | 445 | 1094 |
| L | 639 | 419 | 73 | 71 | 115 | 615 | 480 | 60 | 445 | 1113 |
| XL | 660 | 427 | 73 | 71 | 140 | 635 | 540 | 55 | 450 | 1131 |
All measurements in millimetres unless marked (°) for angles.
