2017 Bulls · MDW

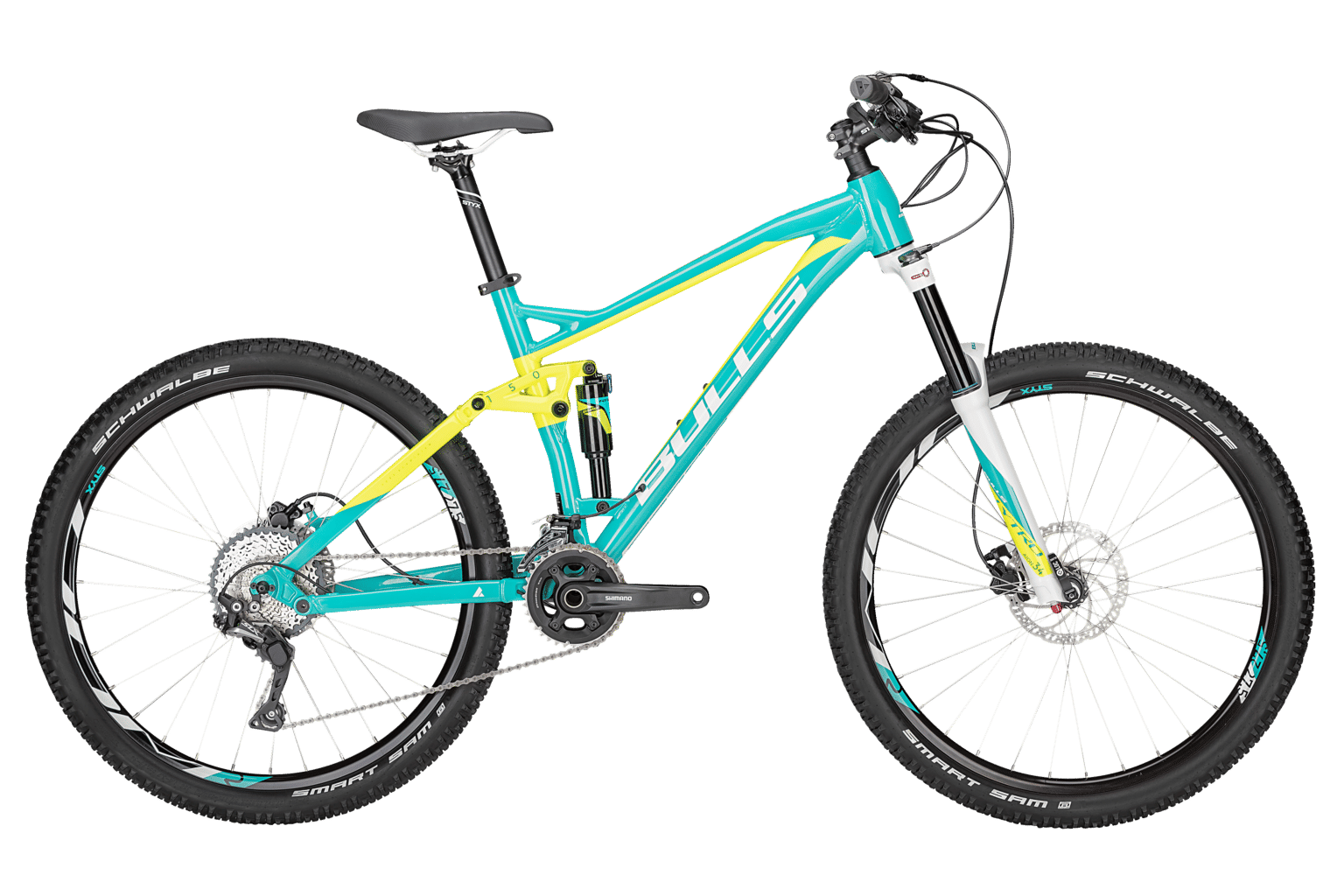

2017 Bulls Jillaroo geometry
Full frame geometry for the 2017 Bulls Jillaroo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 593 | 410 | 74 | 68 | 110 | 580 | 460 | 15 | 440 | 1128 |
| S | 593 | 390 | 74 | 68 | 110 | 560 | 410 | 15 | 440 | 1108 |
| L | 607 | 426 | 74 | 68 | 125 | 600 | 510 | 15 | 440 | 1150 |
All measurements in millimetres unless marked (°) for angles.
