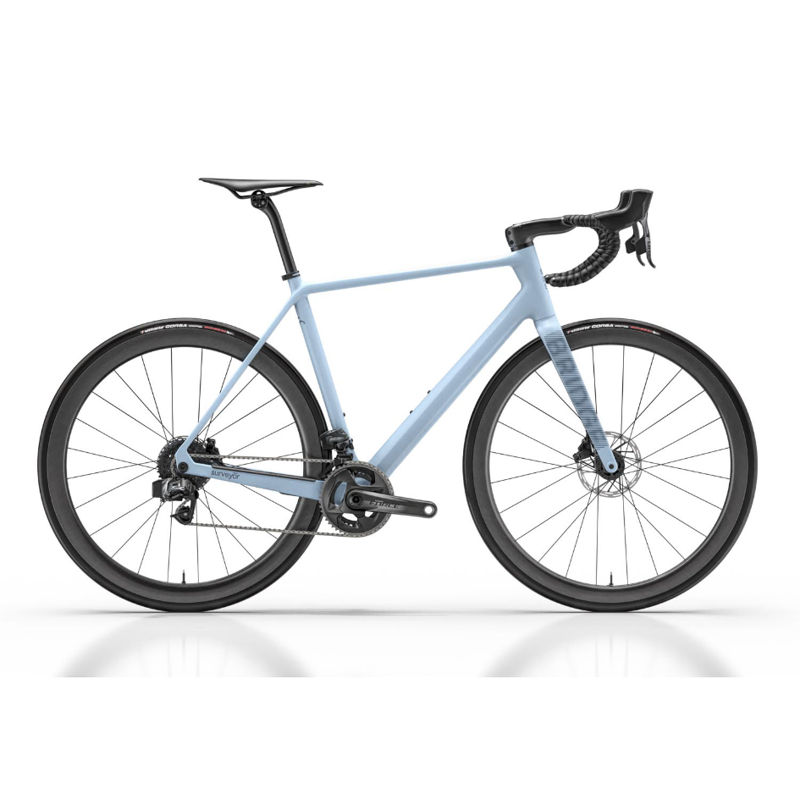

2022 Bridge Surveyor geometry
Full frame geometry for the 2022 Bridge Surveyor, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 510 | 376 | 74 | 71 | 90.1 | 512.7 | 459.4 | 80 | 585.7 | 417 | 989.5 | 53.1 | 65.5 |
| 53 | 539 | 383 | 74 | 71.3 | 119.7 | 527.4 | 487 | 80 | 600.2 | 417 | 1004.1 | 53.1 | 63.9 |
| 55 | 568 | 391 | 73.5 | 72.5 | 145.3 | 548.5 | 532.2 | 78 | 598.7 | 417 | 1003.3 | 45.9 | 63.3 |
| 57 | 596 | 398 | 73 | 72.8 | 173.6 | 568.9 | 559.8 | 78 | 611.9 | 417 | 1016.6 | 45.9 | 63.3 |
| 59 | 625 | 405 | 73 | 73 | 203 | 584.2 | 587.9 | 78 | 625.1 | 417 | 1029.9 | 45.9 | 60 |
All measurements in millimetres unless marked (°) for angles.
