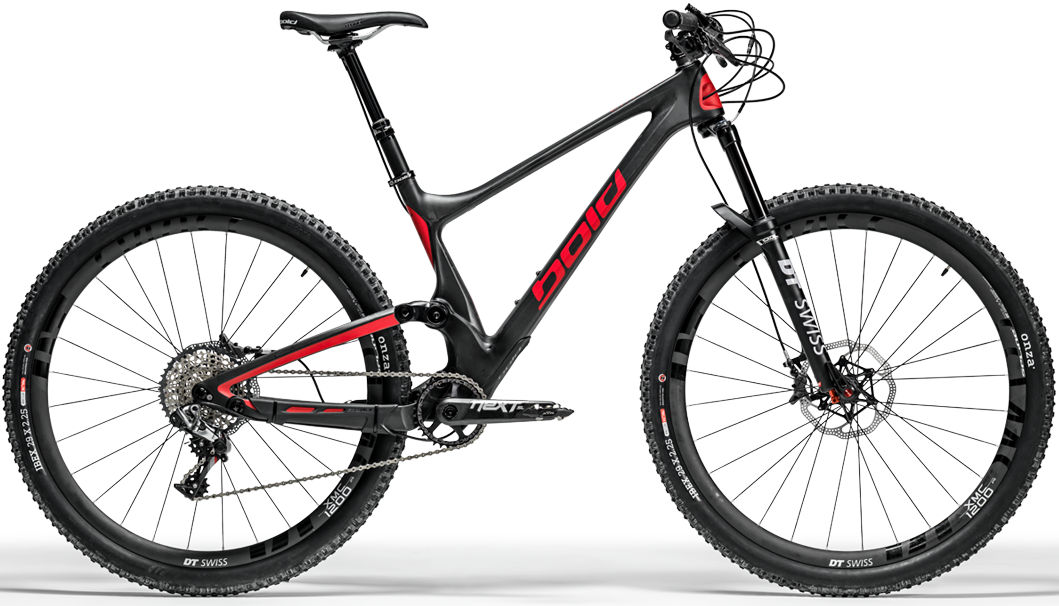

2015 Bold Linkin Trail geometry
Full frame geometry for the 2015 Bold Linkin Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 601 | 395 | 74.7 | 68.5 | 90 | 563 | 415 | 698 | 34 | 669 | 439 | 1106 | 45 | 93 |
| M | 612 | 425 | 74.7 | 68.5 | 101 | 596 | 430 | 720 | 34 | 702 | 439 | 1139 | 45 | 93 |
| L | 633 | 451 | 74.7 | 68.5 | 124 | 628 | 480 | 763 | 34 | 737 | 439 | 1174 | 45 | 93 |
All measurements in millimetres unless marked (°) for angles.
