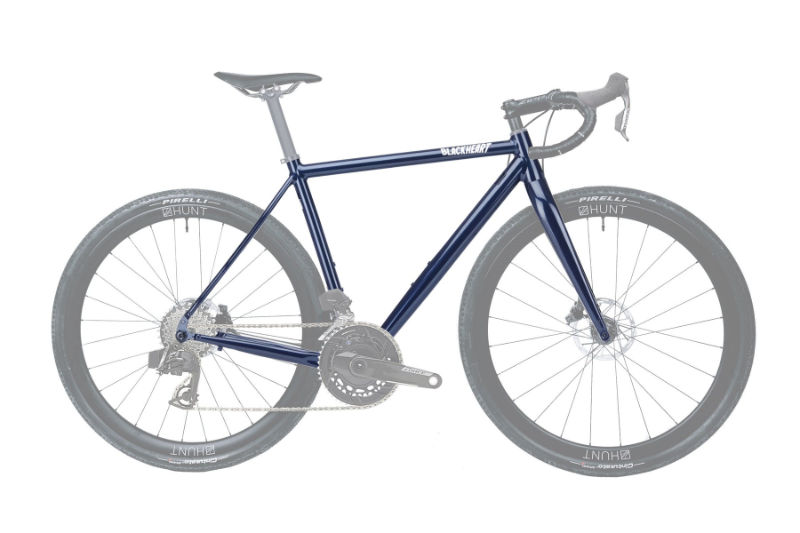

2026 BlackHeart Allroad AL geometry

Name: 2026 BlackHeart Allroad AL
Brand: BlackHeart

Full frame geometry for the 2026 BlackHeart Allroad AL, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
46	533	377	73.5	71.5	100	535	460	685	73	585	422	996	47
49	542	379	73	71.5	110	545	490	710	73	590	422	1001	47
52	551	381	72.5	71.5	120	555	520	735	72	595	422	1007	47
54	567	386	72.5	72	135	565	540	760	72	601	422	1012	47
56	580	392	72.5	72	150	575	560	785	71	611	422	1023	47
58	596	397	72.5	72.5	165	585	580	810	71	616	422	1028	47
60	610	403	72.5	72.5	180	595	600	835	70	626	422	1039	47
62	624	413	72.5	72.5	195	610	620	860	70	641	422	1055	47
64	638	424	72.5	72.5	210	625	640	885	70	656	422	1071	47

All measurements in millimetres unless marked (°) for angles.
