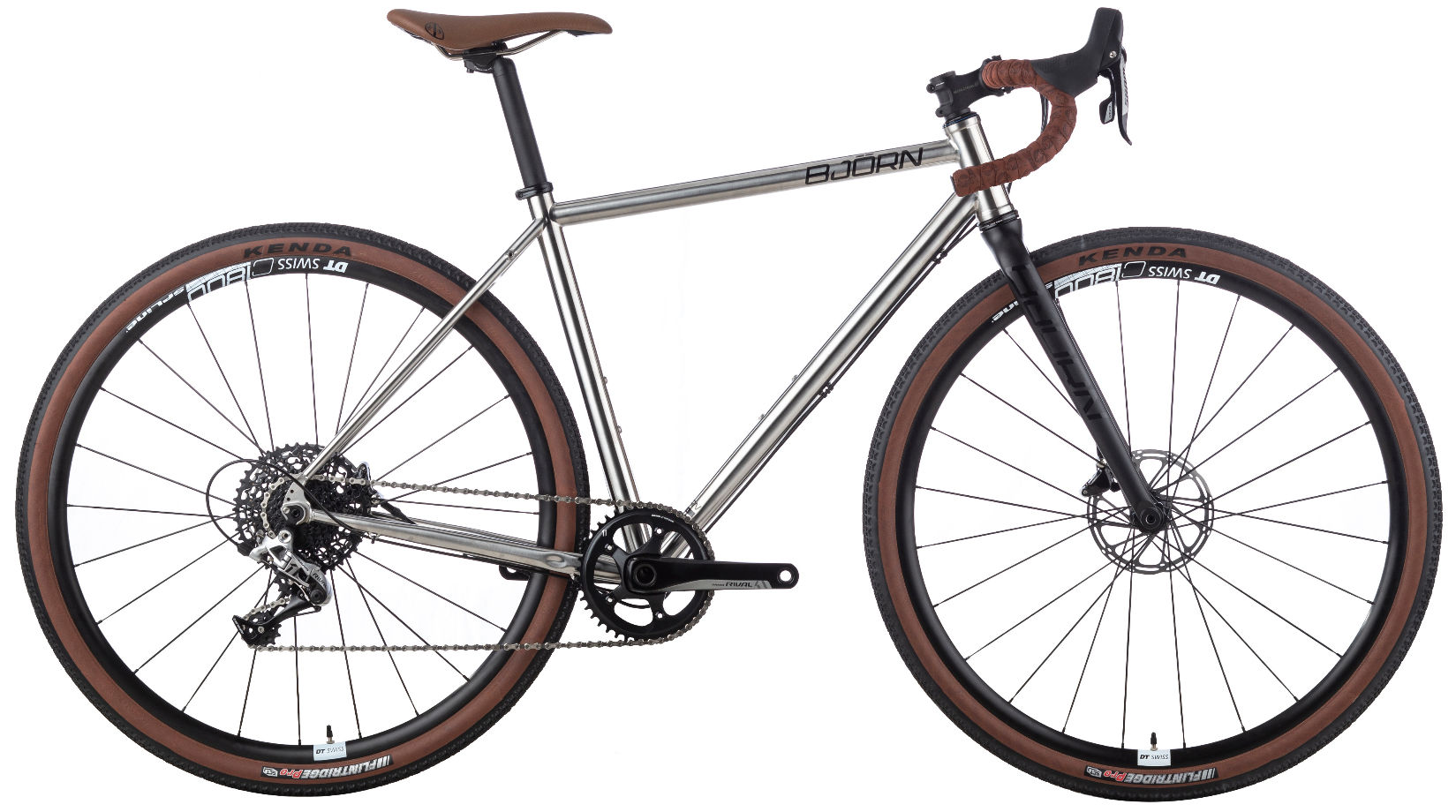

2019 Bjorn Stainless geometry
Full frame geometry for the 2019 Bjorn Stainless, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 555 | 391 | 74 | 69 | 125 | 550 | 500 | 765 | 75 | 435 | 1055 |
| M | 574 | 405 | 74 | 69 | 144 | 570 | 520 | 748 | 75 | 435 | 1079 |
| ML | 593 | 420 | 74 | 69 | 165 | 590 | 540 | 802 | 75 | 435 | 1099 |
| L | 611 | 435 | 74 | 69 | 185 | 610 | 560 | 821 | 75 | 435 | 1120 |
| XL | 620 | 449 | 74 | 69 | 200 | 630 | 580 | 840 | 75 | 435 | 1141 |
All measurements in millimetres unless marked (°) for angles.
