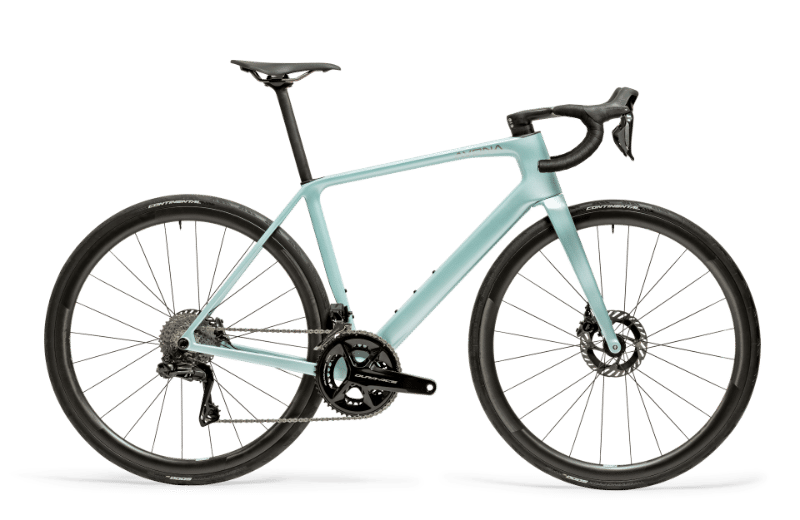

2026 Avona Velum geometry
Full frame geometry for the 2026 Avona Velum, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 365 | 74 | 70.5 | 111 | 512 | 406 | 696 | 72 | 408 | 976 | 50 | 70 |
| S | 532 | 375 | 74 | 72 | 124 | 528 | 436 | 724 | 72 | 408 | 979 | 50 | 60 |
| M | 554 | 387 | 74 | 72 | 148 | 546 | 466 | 753 | 72 | 408 | 998 | 50 | 60 |
| L | 580 | 397 | 74 | 73 | 171 | 563 | 496 | 782 | 72 | 408 | 1006 | 50 | 54 |
| XL | 610 | 405 | 74 | 73 | 203 | 580 | 526 | 811 | 72 | 408 | 1023 | 50 | 54 |
All measurements in millimetres unless marked (°) for angles.
