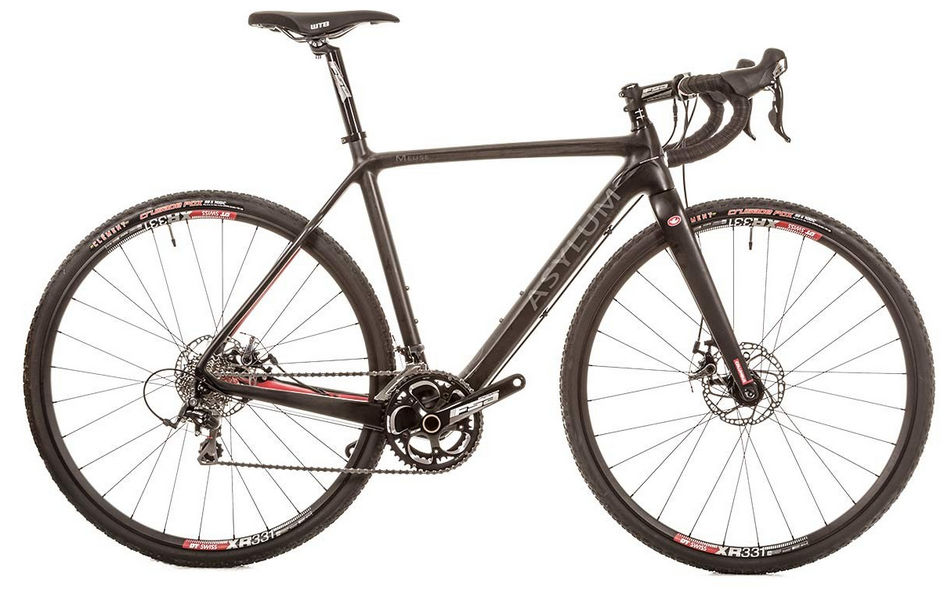

2015 Asylum Meuse CX geometry
Full frame geometry for the 2015 Asylum Meuse CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 520 | 376 | 74 | 71.5 | 100 | 525 | 525 | 60 | 580 | 425 | 998 | 45 |
| M | 539 | 379 | 73.5 | 71.5 | 120 | 540 | 540 | 60 | 590 | 425 | 1008 | 45 |
| L | 560 | 394 | 73.5 | 72 | 140 | 560 | 560 | 60 | 606 | 425 | 1024 | 45 |
| XL | 578 | 403 | 73 | 72 | 160 | 580 | 580 | 60 | 621 | 425 | 1039 | 45 |
All measurements in millimetres unless marked (°) for angles.
