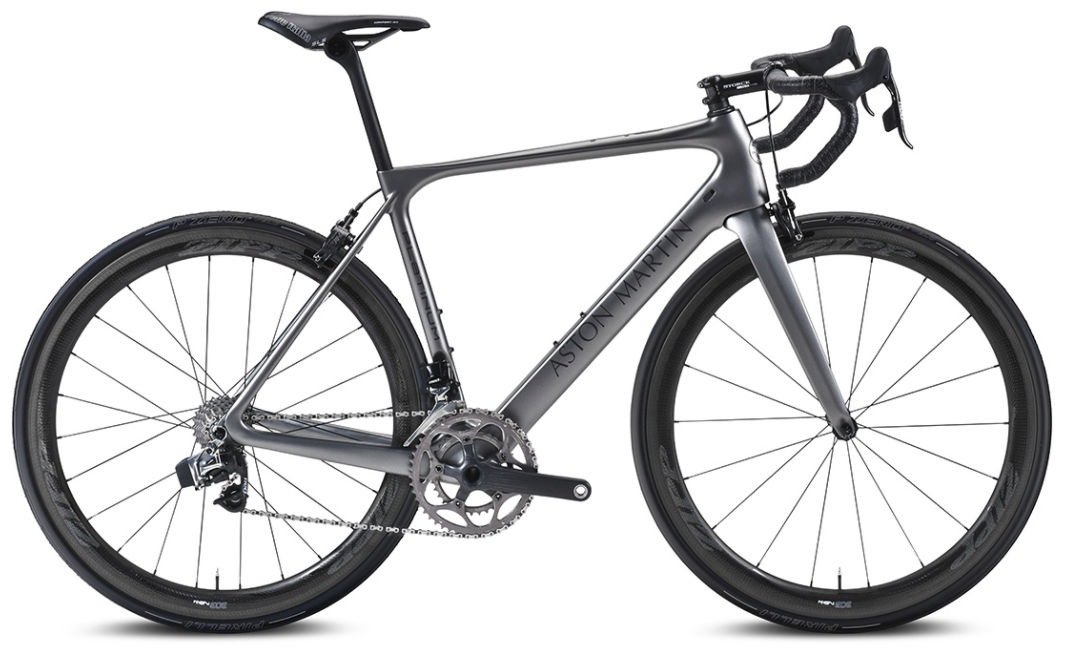

2017 Aston Martin F3 geometry
Full frame geometry for the 2017 Aston Martin F3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 381 | 74.5 | 71.5 | 106 | 524 | 450 | 751 | 68 | 405 | 38 |
| S | 541 | 388 | 73.8 | 72.5 | 132 | 545 | 475 | 778 | 68 | 405 | 38 |
| M | 552 | 402 | 73.5 | 73.5 | 158 | 566 | 500 | 797 | 68 | 405 | 38 |
| L | 568 | 404 | 73.5 | 73.5 | 182 | 582 | 525 | 818 | 68 | 405 | 38 |
| XL | 613 | 417 | 73.5 | 73.5 | 206 | 599 | 550 | 853 | 68 | 405 | 38 |
All measurements in millimetres unless marked (°) for angles.
