2022 Argon18 Sum Pro geometry

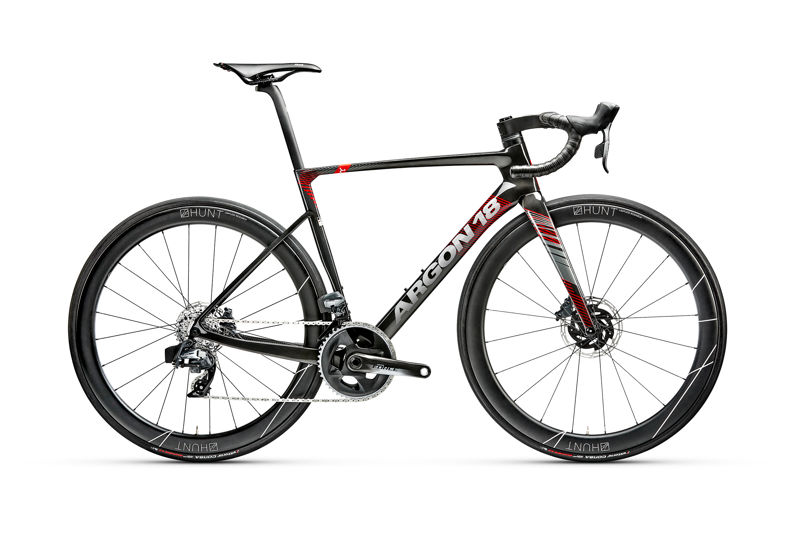

Name: 2022 Argon18 Sum Pro
Brand: Argon18

Full frame geometry for the 2022 Argon18 Sum Pro, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)
XXS 3D +0	471	375	75	71.2	69	503	395	676	69	410	967
XXS 3D +15	485	370	75	71.2	84	503	395	676	69	410	967
XS 3D +0	493	382	74.5	72.1	85	520	425	700	73	410	972
XXS 3D +25	495	367	75	71.2	94	503	395	676	69	410	967
XS 3D +15	507	377	74.5	72.1	100	520	425	700	73	410	972
S 3D +0	516	389	74	72.7	101	538	460	727	77	410	975
XS 3D +25	517	374	74.5	72.1	110	520	425	700	73	410	972
S 3D +15	530	385	74	72.7	116	538	460	727	77	410	975
M 3D +0	540	397	73.5	72.7	126	557	505	766	77	410	990
S 3D +25	540	382	74	72.7	126	538	460	727	77	410	975
M 3D +15	554	393	73.5	72.7	141	557	505	766	77	410	990
M 3D +25	564	390	73.5	72.7	151	557	505	766	77	410	990
L 3D +0	565	405	73	72.7	152	578	550	804	77	410	1006
L 3D +15	579	401	73	72.7	167	578	550	804	77	410	1006
L 3D +25	589	398	73	72.7	177	578	550	804	77	410	1006
XL 3D +0	592	414	72.5	73	180	600	595	841	77	410	1020
XL 3D +15	606	410	72.5	73	195	600	595	841	77	410	1020
XL 3D +25	616	407	72.5	73	205	600	595	841	77	410	1020

All measurements in millimetres unless marked (°) for angles.
