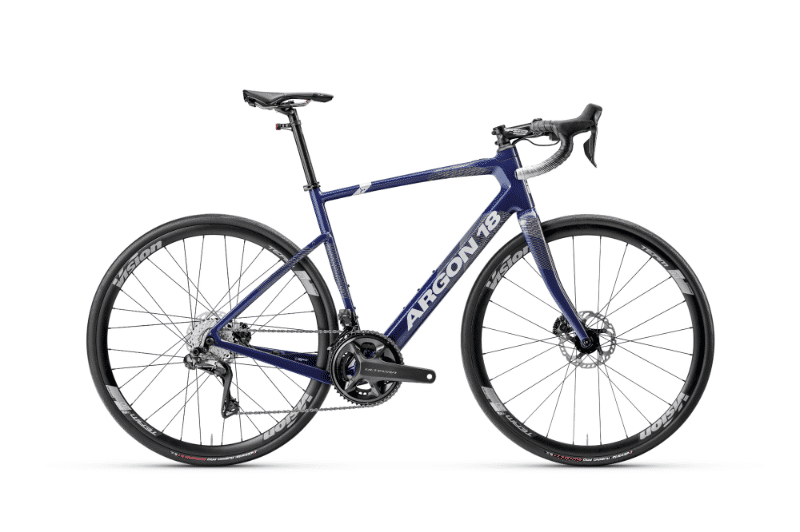

2025 Argon18 Subito eRoad geometry
Full frame geometry for the 2025 Argon18 Subito eRoad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 519 | 352 | 75.5 | 69.3 | 106 | 490 | 420 | 683 | 75 | 422 | 994 |
| XS | 539 | 362 | 74.9 | 70.8 | 121 | 510 | 450 | 710 | 75 | 422 | 997 |
| S | 561 | 372 | 74.3 | 71.3 | 142 | 527 | 485 | 742 | 75 | 422 | 1010 |
| M | 584 | 382 | 73.7 | 72 | 161 | 550 | 520 | 773 | 75 | 422 | 1014 |
| L | 608 | 392 | 73.1 | 72 | 186 | 573 | 555 | 804 | 75 | 422 | 1032 |
| XL | 634 | 402 | 72.5 | 72.3 | 212 | 598 | 590 | 835 | 75 | 422 | 1048 |
All measurements in millimetres unless marked (°) for angles.
