2018 Argon18 Nitrogen Disc geometry

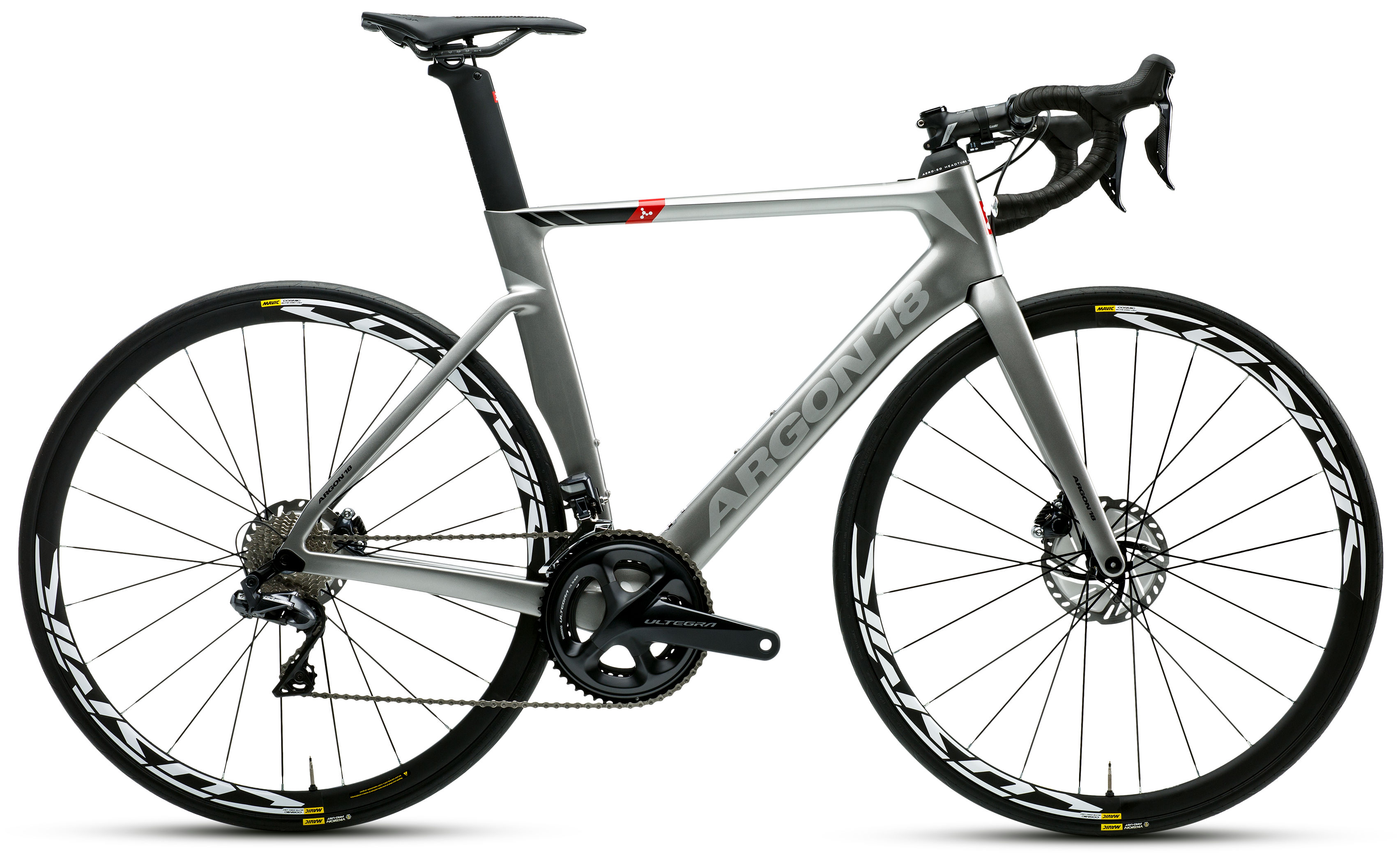

Name: 2018 Argon18 Nitrogen Disc
Brand: Argon18

Full frame geometry for the 2018 Argon18 Nitrogen Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)
XS 3D-0	469	383	74.5	72	81	519	455	696	70	413	973
XS 3D-15	483	378	74.5	72	96	519	455	696	70	413	973
XS 3D-25	493	375	74.5	72	106	519	455	696	70	413	973
S 3D-0	516	390	74	72.7	109	538	485	726	70	413	983
S 3D-15	530	385	74	72.7	124	538	485	726	70	413	983
S 3D-25	540	382	74	72.7	134	538	485	726	70	413	983
M 3D-0	546	394	73.5	72.7	141	556	530	766	70	413	996
M 3D-15	561	389	73.5	72.7	156	556	530	766	70	413	996
L 3D-0	566	402	73	72	162	575	565	796	70	415	1013
M 3D-25	570	386	73.5	72.7	166	556	530	766	70	413	996
L 3D-15	581	397	73	72	177	575	565	796	70	415	1013
L 3D-25	590	394	73	72	187	575	565	796	70	415	1013
XL 3D-0	592	409	72.5	73	188	595	595	823	70	415	1024
XL 3D-15	606	404	72.5	73	203	595	595	823	70	415	1024
XL 3D-25	616	401	72.5	73	213	595	595	823	70	415	1024

All measurements in millimetres unless marked (°) for angles.
