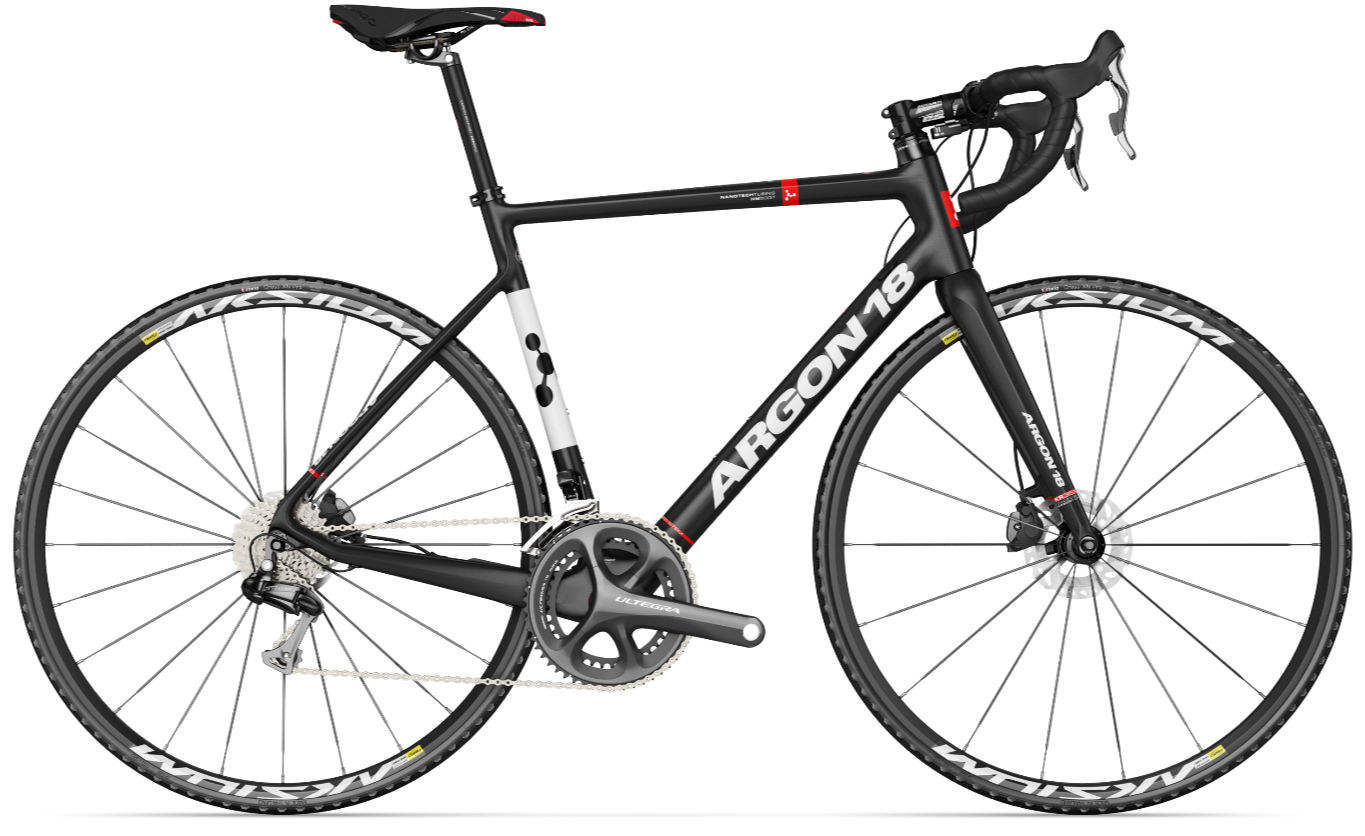

2014 Argon18 Krypton XRoad geometry

Name: 2014 Argon18 Krypton XRoad
Brand: Argon18

Full frame geometry for the 2014 Argon18 Krypton XRoad, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)
XXS 3D-0	496	370	75.5	70.3	97	500	420	680	75	568	415	971
XS 3D-0	509	378	74.5	71.4	107	520	455	710	75	576	415	979
XXS 3D-15	510	365	75.5	70.3	112	500	420	680	75	568	415	971
XXS 3D-25	520	362	75.5	70.3	122	500	420	680	75	568	415	971
XS 3D-15	523	373	74.5	71.4	122	520	455	710	75	576	415	979
S 3D-0	533	381	74	72	130	535	500	750	75	580	415	983
XS 3D-25	533	370	74.5	71.4	132	520	455	710	75	576	415	979
S 3D-15	547	376	74	72	145	535	500	750	75	580	415	983
M 3D-0	554	385	73.5	72	152	550	540	780	75	593	415	996
S 3D-25	557	373	74	72	155	535	500	750	75	580	415	983
M 3D-15	568	380	73.5	72	167	550	540	780	75	593	415	996
M 3D-25	578	377	73.5	72	177	550	540	780	75	593	415	996
L 3D-0	583	391	73	72	183	570	560	800	75	607	418	1014
L 3D-15	597	386	73	72	198	570	560	800	75	607	418	1014
L 3D-25	607	383	73	72	208	570	560	800	75	607	418	1014
XL 3D-0	612	397	72.5	72.3	212	590	595	835	75	617	420	1026
XL 3D-15	626	392	72.5	72.3	227	590	595	835	75	617	420	1026
XL 3D-25	636	389	72.5	72.3	237	590	595	835	75	617	420	1026

All measurements in millimetres unless marked (°) for angles.
