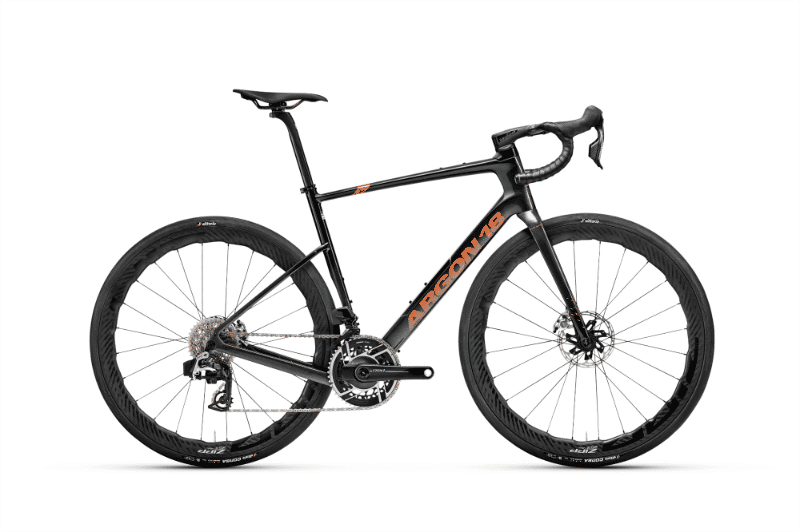

2025 Argon18 Krypton Pro geometry
Full frame geometry for the 2025 Argon18 Krypton Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS 3D-0 | 523 | 357 | 75.5 | 70.6 | 106 | 496 | 420 | 675 | 80 | 415 | 975 |
| XS 3D-0 | 543 | 367 | 74.9 | 71.5 | 123 | 516 | 450 | 704 | 80 | 415 | 984 |
| XXS 3D-25 | 547 | 349 | 75.5 | 70.6 | 131 | 496 | 420 | 675 | 80 | 415 | 975 |
| S 3D-0 | 563 | 377 | 74.3 | 72.3 | 142 | 537 | 485 | 738 | 78 | 415 | 989 |
| XS 3D-25 | 567 | 359 | 74.9 | 71.5 | 148 | 516 | 450 | 704 | 80 | 415 | 984 |
| M 3D-0 | 584 | 386 | 73.7 | 72.3 | 164 | 558 | 520 | 770 | 78 | 415 | 1005 |
| S 3D-25 | 587 | 370 | 74.3 | 72.3 | 167 | 537 | 485 | 738 | 78 | 415 | 989 |
| L 3D-0 | 605 | 395 | 73.1 | 72.3 | 186 | 580 | 555 | 801 | 78 | 415 | 1020 |
| M 3D-25 | 608 | 379 | 73.7 | 72.3 | 189 | 558 | 520 | 770 | 78 | 415 | 1005 |
| XL 3D-0 | 628 | 406 | 72.5 | 72.8 | 208 | 604 | 590 | 832 | 78 | 415 | 1033 |
| L 3D-25 | 629 | 388 | 73.1 | 72.3 | 211 | 580 | 555 | 801 | 78 | 415 | 1020 |
| XL 3D-25 | 652 | 398 | 72.5 | 72.8 | 233 | 604 | 590 | 832 | 78 | 415 | 1033 |
All measurements in millimetres unless marked (°) for angles.
