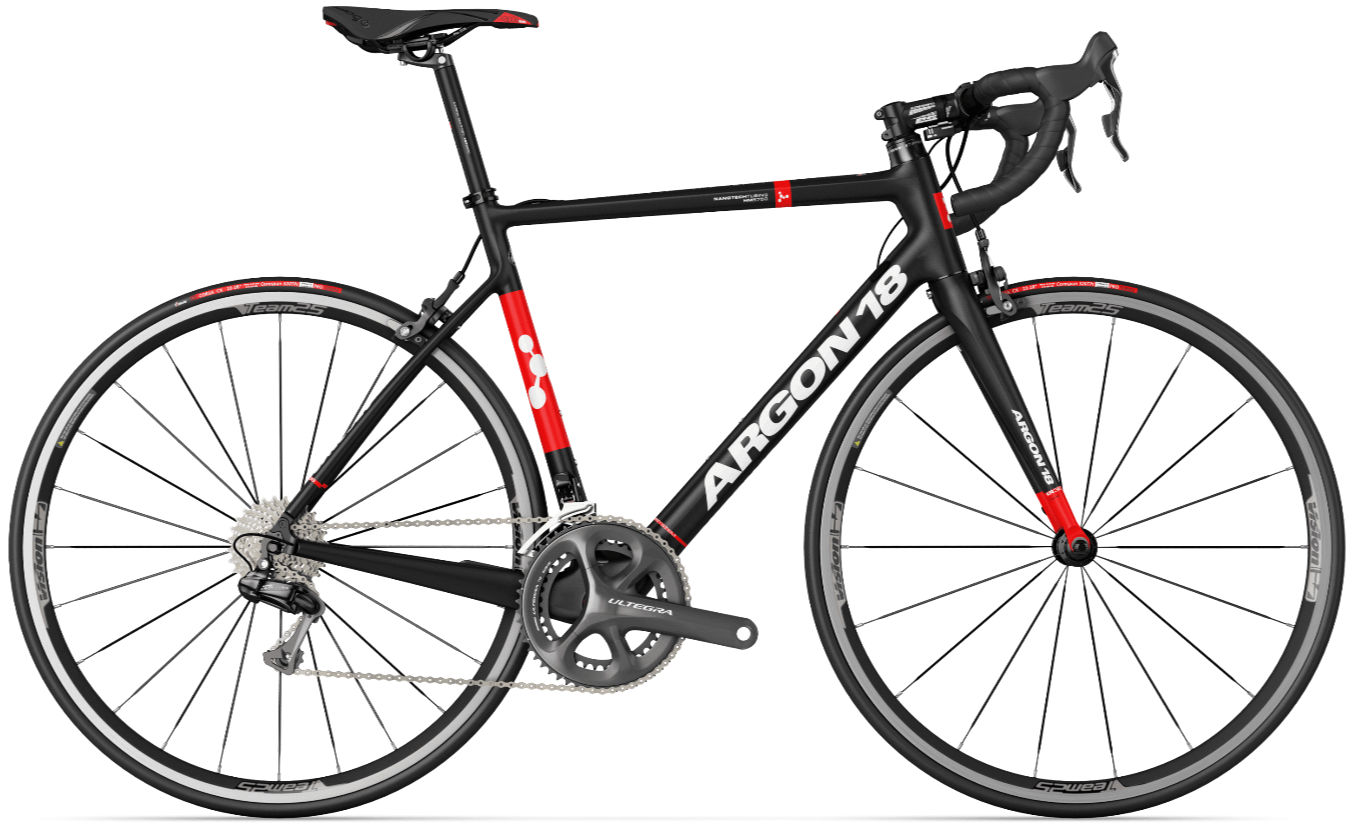

2016 Argon18 Krypton MKIII geometry

Name: 2016 Argon18 Krypton MKIII
Brand: Argon18

Full frame geometry for the 2016 Argon18 Krypton MKIII, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)
XXS 3D-0	490	375	75.5	71	90	500	430	675	70	567	406	963
XS 3D-0	495	385	74.5	72	100	520	465	705	70	571	406	967
XXS 3D-15	504	370	75.5	71	105	500	430	675	70	567	406	963
XS 3D-15	509	380	74.5	72	115	520	465	705	70	571	406	967
XXS 3D-25	514	367	75.5	71	115	500	430	675	70	567	406	963
XS 3D-25	519	377	74.5	72	125	520	465	705	70	571	406	967
S 3D-0	525	390	74	72.7	123	540	513	750	70	580	406	976
S 3D-15	539	386	74	72.7	138	540	513	750	70	580	406	976
S 3D-25	549	383	74	72.7	148	540	513	750	70	580	406	976
M 3D-0	550	395	73.5	72.7	161	556	550	780	70	591	408	989
M 3D-15	564	391	73.5	72.7	176	556	550	780	70	591	408	989
M 3D-25	574	388	73.5	72.7	186	556	550	780	70	591	408	989
L 3D-0	575	400	73	72.7	173	575	575	800	70	600	410	1000
L 3D-15	589	396	73	72.7	188	575	575	800	70	600	410	1000
XL 3D-0	595	405	72.5	73	195	595	600	830	70	610	410	1010
L 3D-25	599	393	73	72.7	198	575	575	800	70	600	410	1000
XL 3D-15	609	401	72.5	73	210	595	600	830	70	610	410	1010
XL 3D-25	619	398	72.5	73	220	595	600	830	70	610	410	1010

All measurements in millimetres unless marked (°) for angles.
