2018 Argon18 Krypton GF geometry

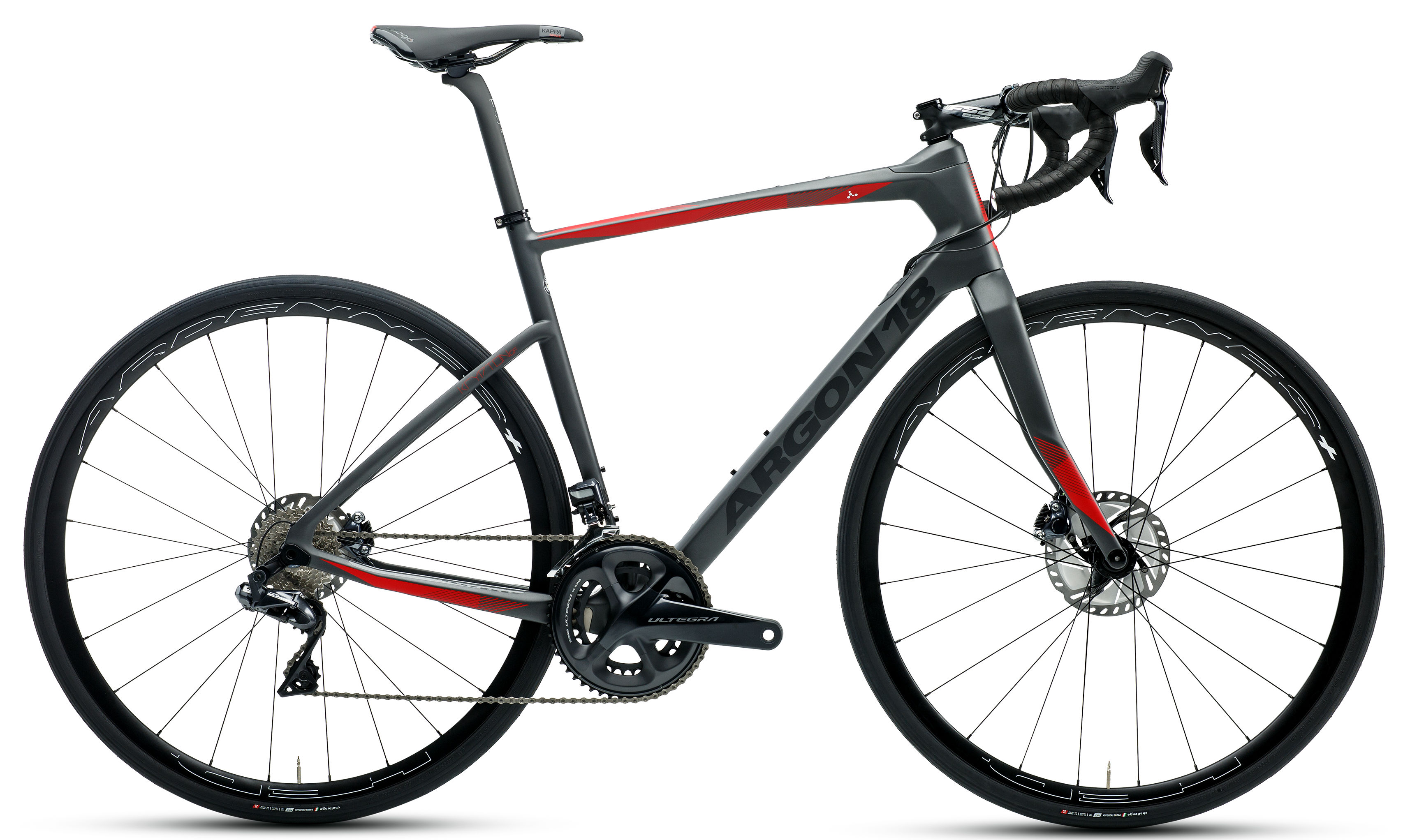

Name: 2018 Argon18 Krypton GF
Brand: Argon18

Full frame geometry for the 2018 Argon18 Krypton GF, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)
XXS 3D-0	519	359	75.5	70.3	91	496	420	673	80	417	981
XXS 3D-15	533	353	75.5	70.3	106	496	420	673	80	417	981
XS 3D-0	539	369	74.9	71.3	108	516	450	700	80	417	989
XXS 3D-30	547	348	75.5	70.3	121	496	420	673	80	417	981
XS 3D-15	553	364	74.9	71.3	123	516	450	700	80	417	989
S 3D-0	559	379	74.3	72	127	537	485	734	78	420	997
XS 3D-30	567	359	74.9	71.3	138	516	450	700	80	417	989
S 3D-15	573	374	74.3	72	142	537	485	734	78	420	997
M 3D-0	580	388	73.7	72	149	558	520	764	78	420	1013
S 3D-30	588	370	74.3	72	157	537	485	734	78	420	997
M 3D-15	594	383	73.7	72	164	558	520	764	78	420	1013
L 3D-0	601	397	73.1	72	174	580	555	797	75	420	1030
M 3D-30	608	379	73.7	72	179	558	520	764	78	420	1013
L 3D-15	615	392	73.1	72	189	580	555	797	75	420	1030
L 3D-30	629	388	73.1	72	204	580	555	797	75	420	1030
XL 3D-0	635	407	72.5	72.5	196	604	590	827	75	420	1043
XL 3D-15	664	417	72.5	72.5	211	604	590	827	75	420	1043
XL 3D-30	694	428	72.5	72.5	223	604	590	827	75	420	1043

All measurements in millimetres unless marked (°) for angles.
