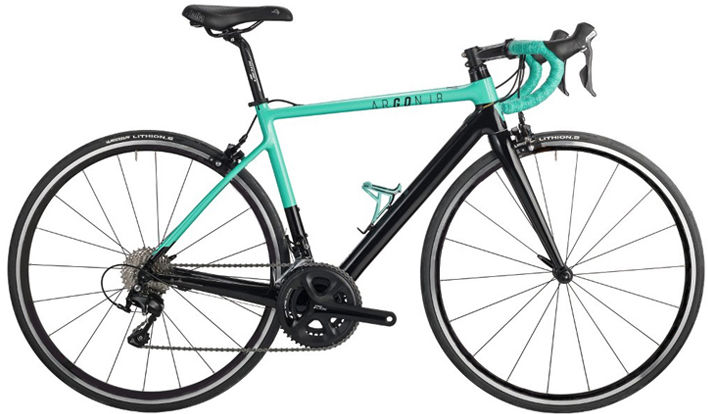

2018 Argon18 Go geometry
Full frame geometry for the 2018 Argon18 Go, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS 3D-0 | 491 | 369 | 75.5 | 70.3 | 95 | 498 | 420 | 732 | 75 | 573 | 408 | 969 |
| XS 3D-0 | 504 | 377 | 74.5 | 71.4 | 105 | 518 | 455 | 745 | 75 | 576 | 408 | 972 |
| XXS 3D-25 | 515 | 360 | 75.5 | 70.3 | 95 | 498 | 420 | 732 | 75 | 573 | 408 | 969 |
| XS 3D-25 | 528 | 369 | 74.5 | 71.4 | 105 | 518 | 455 | 745 | 75 | 576 | 408 | 972 |
| S 3D-0 | 529 | 382 | 74 | 72 | 129 | 534 | 500 | 769 | 75 | 584 | 410 | 982 |
| M 3D-0 | 550 | 386 | 73.5 | 72 | 151 | 550 | 540 | 790 | 75 | 594 | 413 | 995 |
| S 3D-25 | 553 | 374 | 74 | 72 | 129 | 534 | 500 | 769 | 75 | 584 | 410 | 982 |
| M 3D-25 | 574 | 378 | 73.5 | 72 | 151 | 550 | 540 | 790 | 75 | 594 | 413 | 995 |
| L 3D-0 | 579 | 392 | 73 | 72 | 181 | 570 | 561 | 819 | 75 | 609 | 415 | 1013 |
| L 3D-25 | 603 | 384 | 73 | 72 | 181 | 570 | 561 | 819 | 75 | 609 | 415 | 1013 |
| XL 3D-0 | 608 | 398 | 72.5 | 72.3 | 210 | 590 | 595 | 848 | 75 | 622 | 415 | 1026 |
| XL 3D-25 | 631 | 391 | 72.5 | 72.3 | 210 | 590 | 595 | 848 | 75 | 622 | 415 | 1026 |
All measurements in millimetres unless marked (°) for angles.
