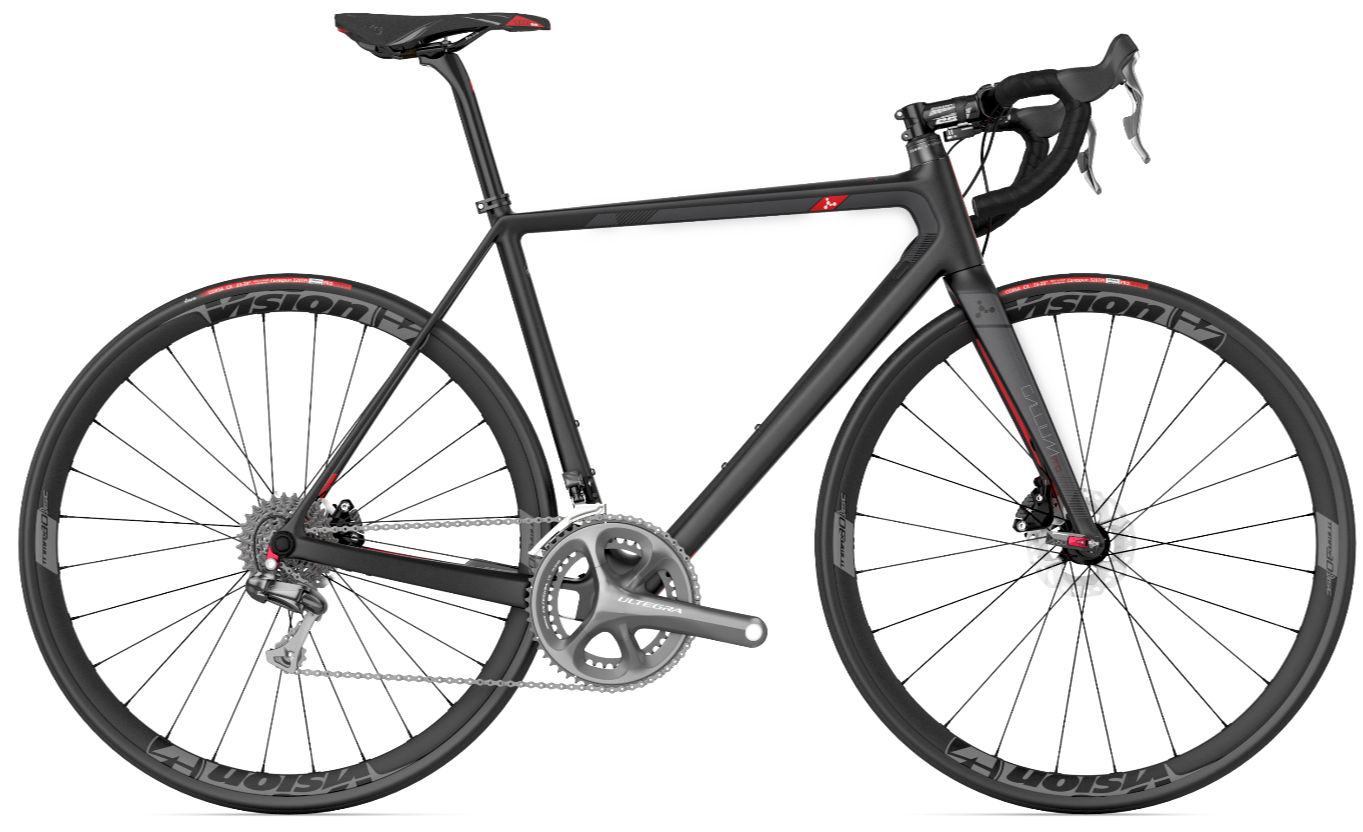

2017 Argon18 Gallium Pro Disc geometry
Full frame geometry for the 2017 Argon18 Gallium Pro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS 3D-0 | 474 | 374 | 75.5 | 71 | 75 | 499 | 674 | 65 | 564 | 415 | 970 |
| XXS 3D-15 | 488 | 369 | 75.5 | 71 | 90 | 499 | 674 | 65 | 564 | 415 | 970 |
| XS 3D-0 | 492 | 382 | 74.5 | 72 | 85 | 519 | 700 | 70 | 568 | 415 | 973 |
| XXS 3D-25 | 498 | 366 | 75.5 | 71 | 100 | 499 | 674 | 65 | 564 | 415 | 970 |
| XS 3D-15 | 506 | 377 | 74.5 | 72 | 100 | 519 | 700 | 70 | 568 | 415 | 973 |
| XS 3D-25 | 516 | 374 | 74.5 | 72 | 110 | 519 | 700 | 70 | 568 | 415 | 973 |
| S 3D-0 | 523 | 389 | 74 | 72.7 | 110 | 539 | 730 | 75 | 578 | 415 | 981 |
| S 3D-15 | 537 | 384 | 74 | 72.7 | 125 | 539 | 730 | 75 | 578 | 415 | 981 |
| S 3D-25 | 547 | 381 | 74 | 72.7 | 135 | 539 | 730 | 75 | 578 | 415 | 981 |
| M 3D-0 | 552 | 395 | 73.5 | 72.7 | 140 | 559 | 764 | 75 | 594 | 415 | 997 |
| M 3D-15 | 566 | 391 | 73.5 | 72.7 | 155 | 559 | 764 | 75 | 594 | 415 | 997 |
| L 3D-0 | 575 | 401 | 73 | 72.7 | 165 | 577 | 794 | 75 | 606 | 415 | 1010 |
| M 3D-25 | 575 | 388 | 73.5 | 72.7 | 165 | 559 | 764 | 75 | 594 | 415 | 997 |
| L 3D-15 | 590 | 396 | 73 | 72.7 | 180 | 577 | 794 | 75 | 606 | 415 | 1010 |
| XL 3D-0 | 596 | 408 | 72.5 | 73 | 185 | 596 | 820 | 75 | 617 | 415 | 1021 |
| L 3D-25 | 599 | 394 | 73 | 72.7 | 190 | 577 | 794 | 75 | 606 | 415 | 1010 |
| XL 3D-15 | 610 | 404 | 72.5 | 73 | 200 | 596 | 820 | 75 | 617 | 415 | 1021 |
| XL 3D-25 | 620 | 401 | 72.5 | 73 | 210 | 596 | 820 | 75 | 617 | 415 | 1021 |
All measurements in millimetres unless marked (°) for angles.
