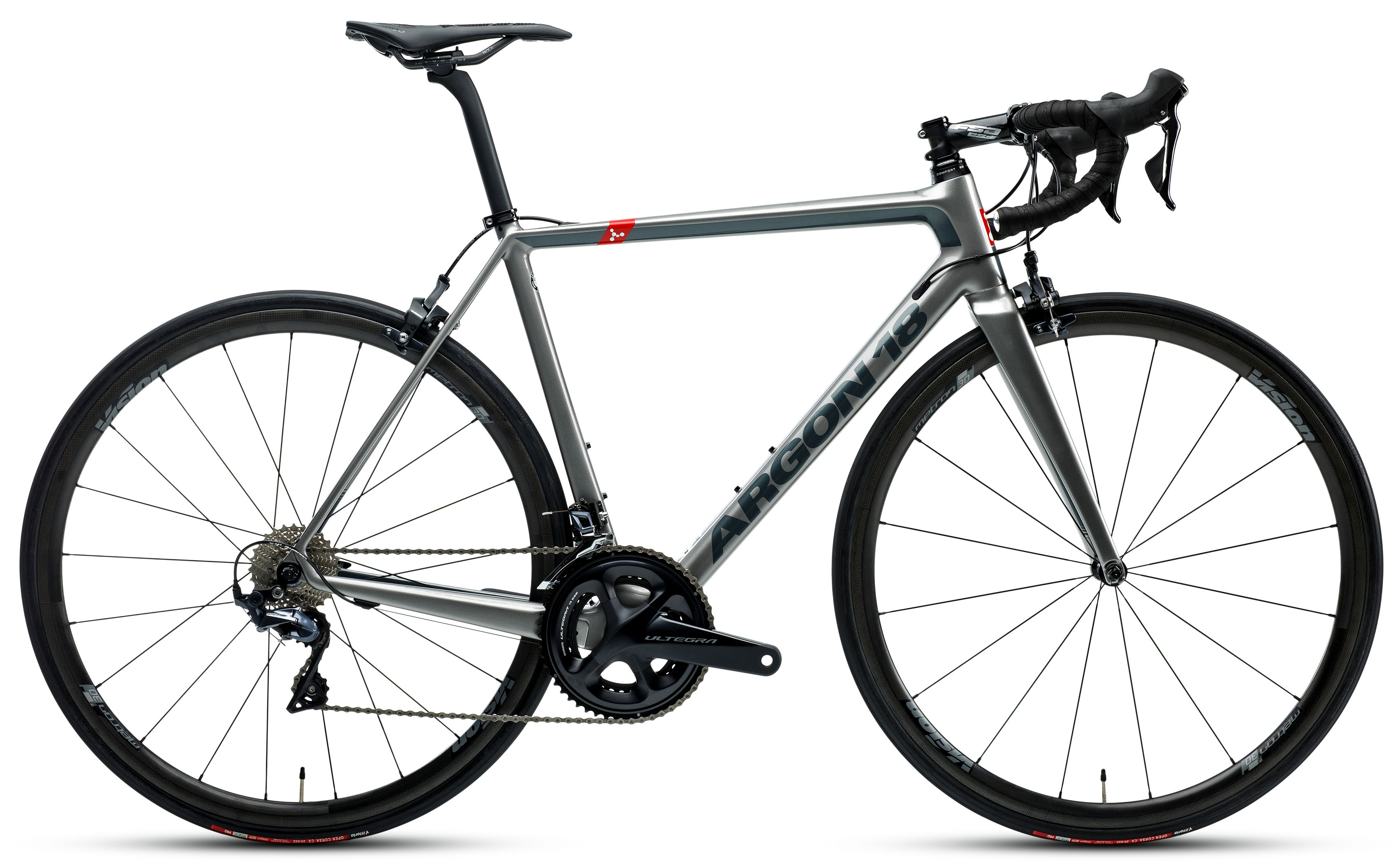

2018 Argon18 Gallium MK II geometry

Name: 2018 Argon18 Gallium MK II
Brand: Argon18

Full frame geometry for the 2018 Argon18 Gallium MK II, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)
XXS 3D-0	474	374	75.5	71	75	499	420	674	65	406	961
XXS 3D-15	488	369	75.5	71	90	499	420	674	65	406	961
XS 3D-0	492	382	74.5	72	85	519	455	700	70	406	964
XXS 3D-25	498	366	75.5	71	100	499	420	674	65	406	961
XS 3D-15	506	377	74.5	72	100	519	455	700	70	406	964
XS 3D-25	516	374	74.5	72	110	519	455	700	70	406	964
S 3D-0	523	389	74	72.7	110	539	493	730	75	406	972
S 3D-15	537	384	74	72.7	125	539	493	730	75	406	972
S 3D-25	547	381	74	72.7	135	539	493	730	75	406	972
M 3D-0	552	395	73.5	72.7	140	559	530	764	75	408	990
M 3D-15	566	391	73.5	72.7	155	559	530	764	75	408	990
L 3D-0	575	401	73	72.7	165	577	565	794	75	410	1005
M 3D-25	575	388	73.5	72.7	165	559	530	764	75	408	990
L 3D-15	590	396	73	72.7	180	577	565	794	75	410	1005
XL 3D-0	596	408	72.5	73	185	596	595	820	75	410	1016
L 3D-25	599	393	73	72.7	190	577	565	794	75	410	1005
XL 3D-15	610	404	72.5	73	200	596	595	820	75	410	1016
XL 3D-25	620	401	72.5	73	210	596	595	820	75	410	1016

All measurements in millimetres unless marked (°) for angles.
