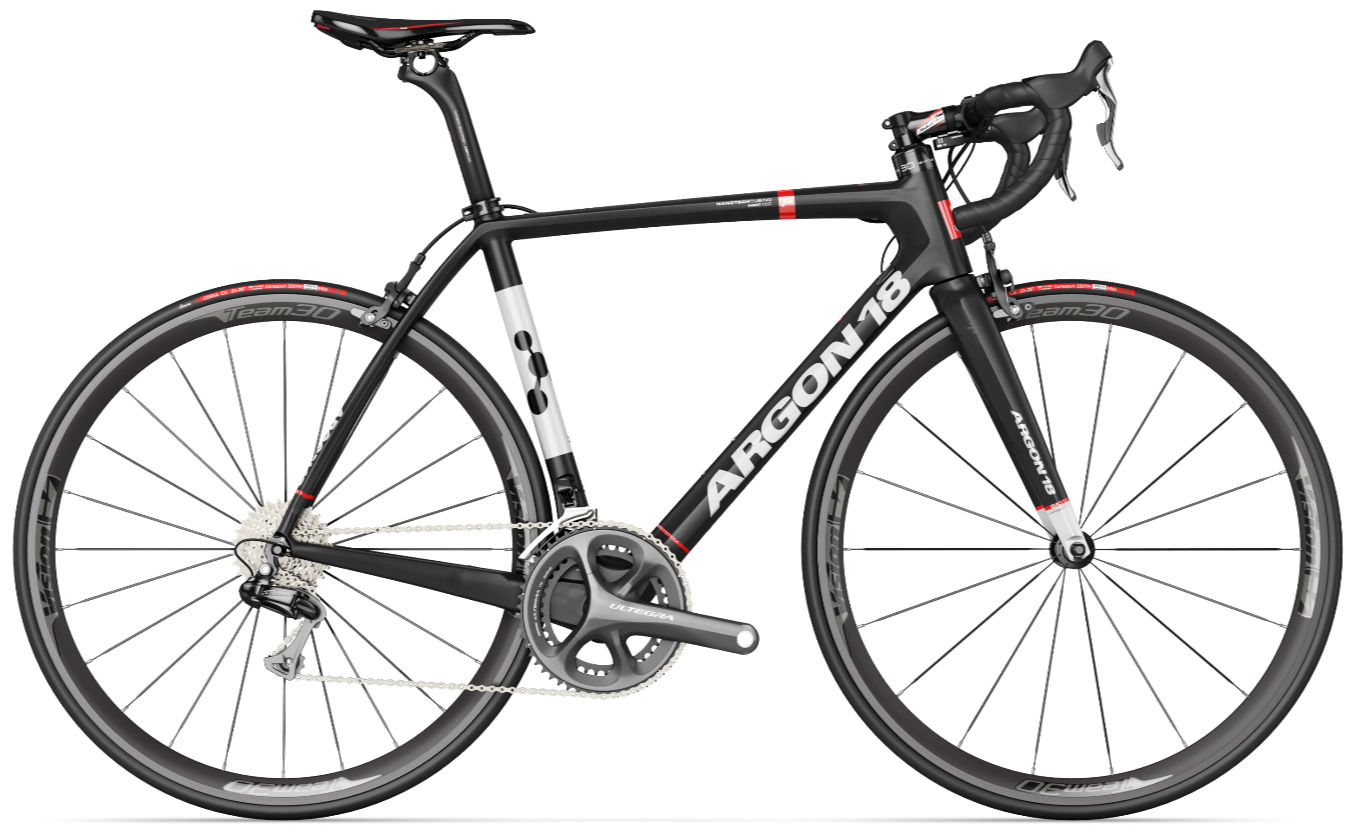

2014 Argon18 Gallium MK I geometry

Name: 2014 Argon18 Gallium MK I
Brand: Argon18

Full frame geometry for the 2014 Argon18 Gallium MK I, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)
XXS 3D-0	485	375	75.5	71	77	502	415	660	75	566	406	960
XS 3D-0	490	385	74.5	72	82	520	455	690	75	566	406	960
XXS 3D-15	499	370	75.5	71	92	502	415	660	75	566	406	960
XS 3D-15	504	380	74.5	72	97	520	455	690	75	566	406	960
XXS 3D-25	509	367	75.5	71	102	502	415	660	75	566	406	960
XS 3D-25	514	377	74.5	72	107	520	455	690	75	566	406	960
S 3D-0	520	390	74	72.7	109	540	490	730	75	576	406	970
S 3D-15	534	386	74	72.7	124	540	490	730	75	576	406	970
S 3D-25	544	383	74	72.7	134	540	490	730	75	576	406	970
M 3D-0	545	395	73.5	72.7	139	556	530	770	75	584	408	980
M 3D-15	559	391	73.5	72.7	154	556	530	770	75	584	408	980
M 3D-25	569	388	73.5	72.7	164	556	530	770	75	584	408	980
L 3D-0	570	400	73	72.7	162	575	565	790	75	602	410	1000
L 3D-15	584	396	73	72.7	177	575	565	790	75	602	410	1000
L 3D-25	594	393	73	72.7	187	575	565	790	75	602	410	1000
XL 3D-0	595	405	72.5	73	199	595	595	815	75	616	410	1015
XL 3D-15	609	401	72.5	73	214	595	595	815	75	616	410	1015
XL 3D-25	619	398	72.5	73	224	595	595	815	75	616	410	1015

All measurements in millimetres unless marked (°) for angles.
