2018 Argon18 Gallium CS geometry

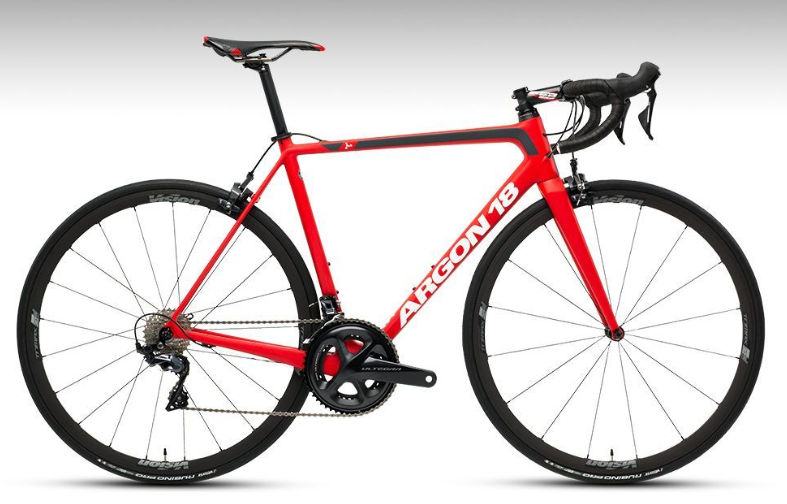

Name: 2018 Argon18 Gallium CS
Brand: Argon18

Full frame geometry for the 2018 Argon18 Gallium CS, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)
XXS 3D-0	481	375	73.5	71	76	500	418	661	75	406	960
XS 3D-0	489	383	74.5	72	81	519	453	690	75	406	962
XXS 3D-15	495	370	73.5	71	91	500	418	661	75	406	960
XS 3D-15	503	378	74.5	72	96	519	453	690	75	406	962
XXS 3D-25	505	367	73.5	71	101	500	418	661	75	406	960
XS 3D-25	513	375	74.5	72	106	519	453	690	75	406	962
S 3D-0	517	389	74	72.7	108	538	492	726	75	406	971
S 3D-15	531	385	74	72.7	123	538	492	726	75	406	971
S 3D-25	541	382	74	72.7	133	538	492	726	75	406	971
M 3D-0	547	394	73.5	72.7	140	556	530	761	75	408	987
M 3D-15	561	390	73.5	72.7	155	556	530	761	75	408	987
L 3D-0	569	401	73	72.7	163	575	565	791	75	410	1003
M 3D-25	571	387	73.5	72.7	165	556	530	761	75	408	987
L 3D-15	583	397	73	72.7	178	575	565	791	75	410	1003
L 3D-25	593	394	73	72.7	188	575	565	791	75	410	1003
XL 3D-0	594	408	72.5	73	188	595	595	818	75	410	1015
XL 3D-15	608	404	72.5	73	203	595	595	818	75	410	1015
XL 3D-25	618	401	72.5	73	213	595	595	818	75	410	1015

All measurements in millimetres unless marked (°) for angles.
