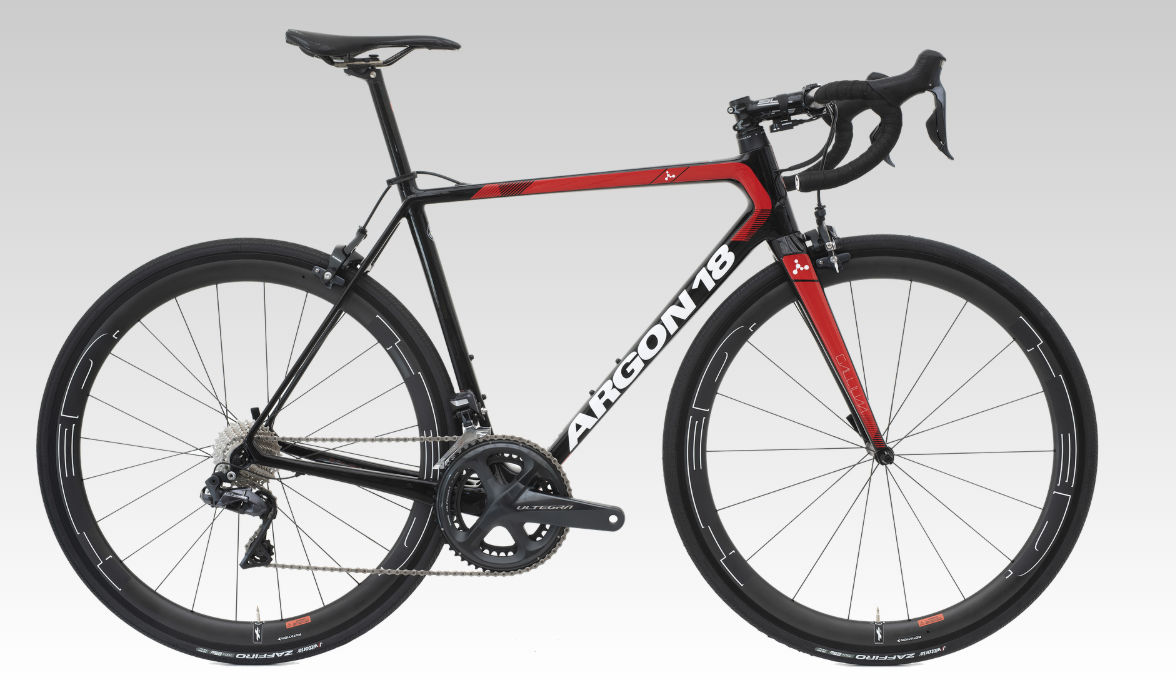

2019 Argon18 Gallium Classic geometry

Name: 2019 Argon18 Gallium Classic
Brand: Argon18

Full frame geometry for the 2019 Argon18 Gallium Classic, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)
XXS	481	375	75.5	71	76	500	418	661	75	566	406	960
XS	489	383	74.5	72	81	519	453	690	75	568	406	962
XXS 3D-15	495	370	75.5	71	91	500	418	661	75	566	406	960
XS 3D-15	503	378	74.5	72	96	519	453	690	75	568	406	962
XXS 3D-30	505	367	75.5	71	101	500	418	661	75	566	406	960
XS 3D-30	513	375	74.5	72	106	519	453	690	75	568	406	962
S	517	389	74	72.7	108	538	492	726	75	577	406	971
S 3D-15	531	385	74	72.7	123	538	492	726	75	577	406	971
S 3D-30	541	382	74	72.7	133	538	492	726	75	577	406	971
M	547	394	73.5	72.7	140	556	530	761	75	591	408	987
M 3D-15	561	390	73.5	72.7	155	556	530	761	75	591	408	987
L	569	401	73	72.7	163	575	565	791	75	605	410	1003
M 3D-30	571	387	73.5	72.7	165	556	530	761	75	591	408	987
L 3D-15	583	397	73	72.7	178	575	565	791	75	605	410	1003
L 3D-30	593	394	73	72.7	188	575	565	791	75	605	410	1003
XL	594	408	72.5	73	188	595	595	818	75	616	410	1015
XL 3D-15	608	404	72.5	73	203	595	595	818	75	616	410	1015
XL 3D-30	618	401	72.5	73	213	595	595	818	75	616	410	1015

All measurements in millimetres unless marked (°) for angles.
