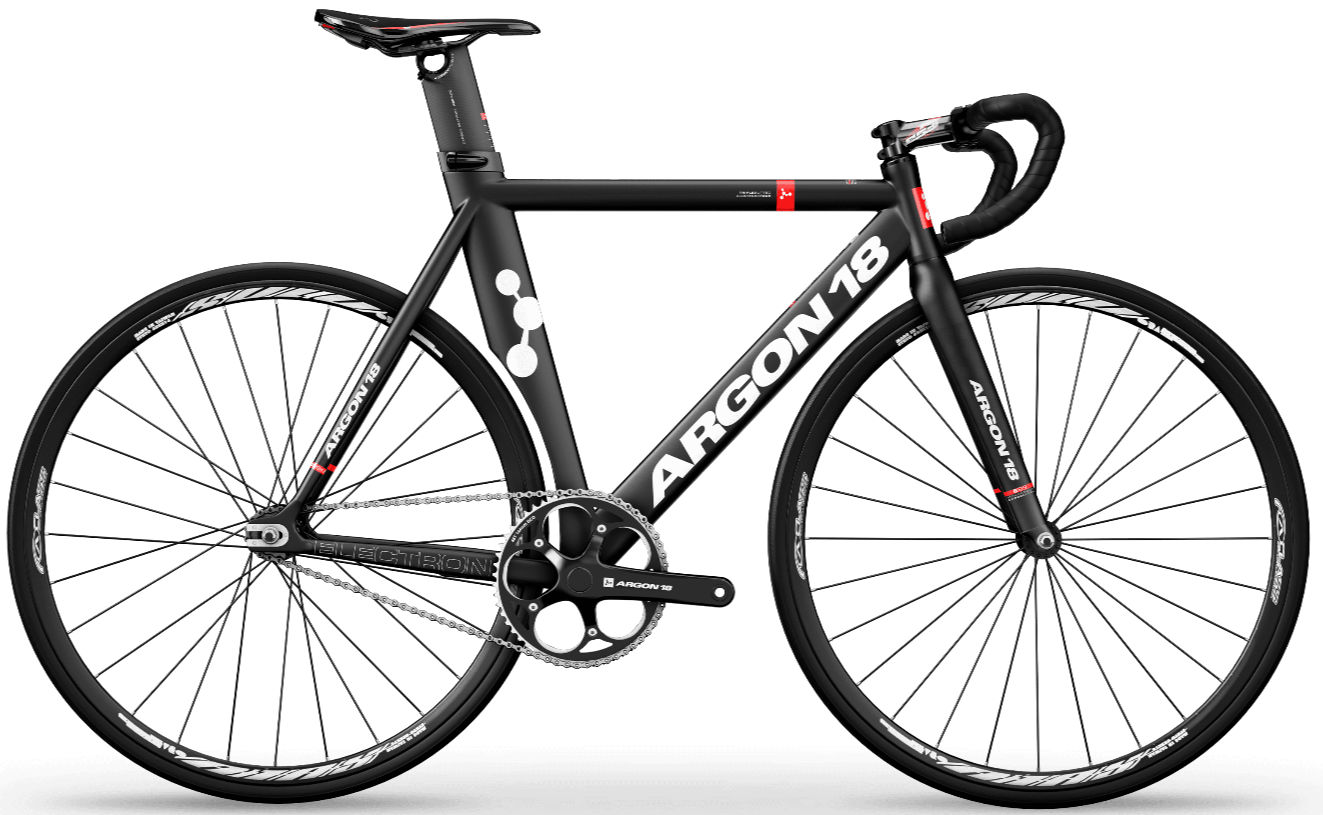

2016 Argon18 Electron MKII geometry
Full frame geometry for the 2016 Argon18 Electron MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 480 | 390 | 76.5 | 74 | 91 | 505 | 670 | 45 | 554 | 373 | 922 | 30 |
| S | 489 | 394 | 75 | 74.5 | 100 | 525 | 735 | 45 | 558 | 373 | 926 | 30 |
| M | 513 | 398 | 74.5 | 74.5 | 125 | 540 | 780 | 45 | 569 | 373 | 937 | 30 |
| L | 538 | 406 | 74 | 74.5 | 150 | 560 | 803 | 45 | 584 | 373 | 953 | 30 |
All measurements in millimetres unless marked (°) for angles.
