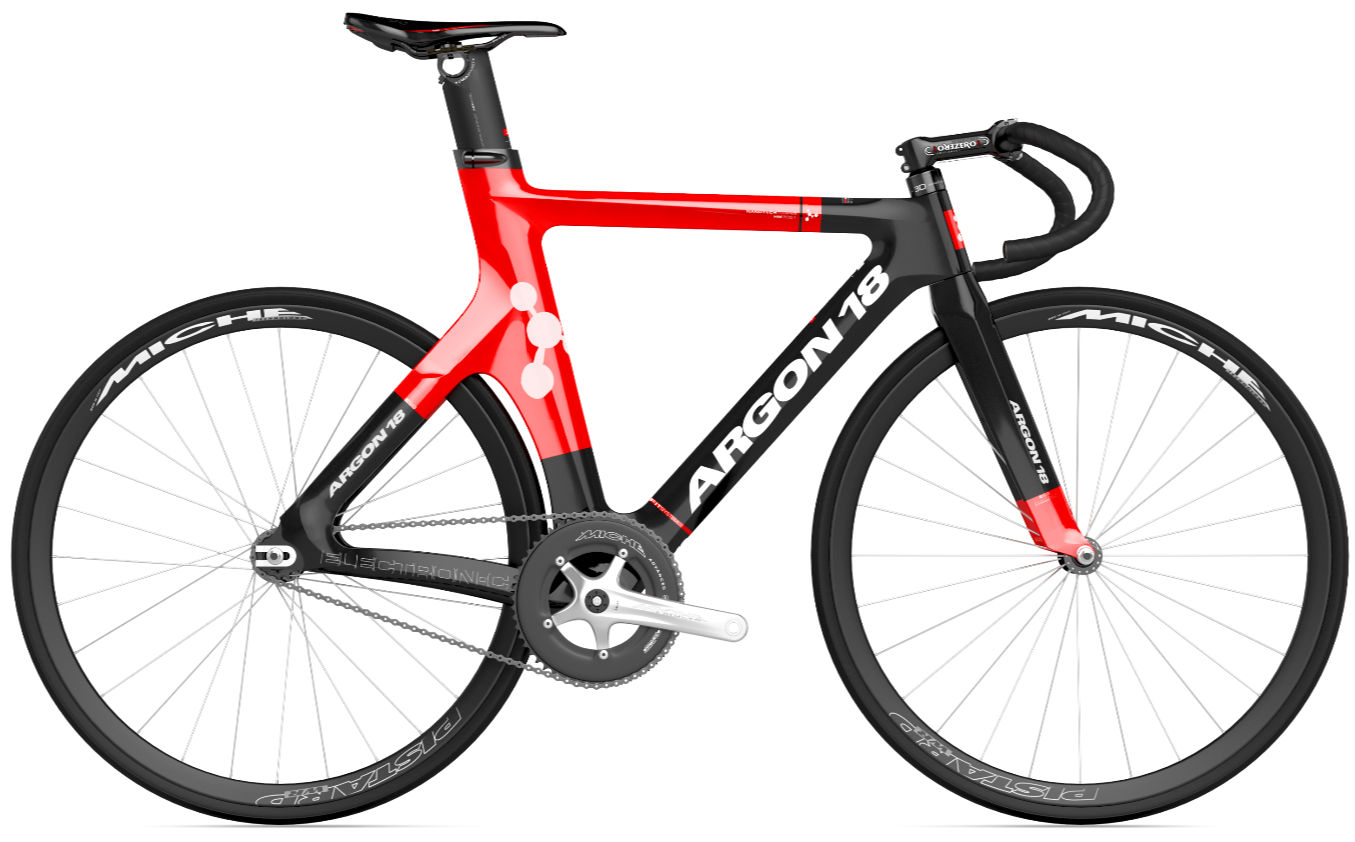

2014 Argon18 Electron C geometry

Name: 2014 Argon18 Electron C
Brand: Argon18

Full frame geometry for the 2014 Argon18 Electron C, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XS 3D-0	479	400	76	72.5	85	520	495	715	55	585	390	969	30
S 3D-0	489	413	76	72.5	95	535	555	759	55	599	390	983	30
XS 3D-15	493	395	76	72.5	100	520	495	715	55	585	390	969	30
S 3D-15	503	408	76	72.5	110	535	555	759	55	599	390	983	30
XS 3D-25	503	392	76	72.5	110	520	495	715	55	585	390	969	30
M 3D-0	507	421	76	72.5	114	547	590	779	55	612	390	996	30
S 3D-25	513	405	76	72.5	120	535	555	759	55	599	390	983	30
M 3D-15	521	416	76	72.5	129	547	590	779	55	612	390	996	30
L 3D-0	530	428	76	72.5	138	560	610	804	55	627	390	1011	30
M 3D-25	531	413	76	72.5	139	547	590	779	55	612	390	996	30
L 3D-15	544	423	76	72.5	153	560	610	804	55	627	390	1011	30
L 3D-25	554	420	76	72.5	163	560	610	804	55	627	390	1011	30

All measurements in millimetres unless marked (°) for angles.
