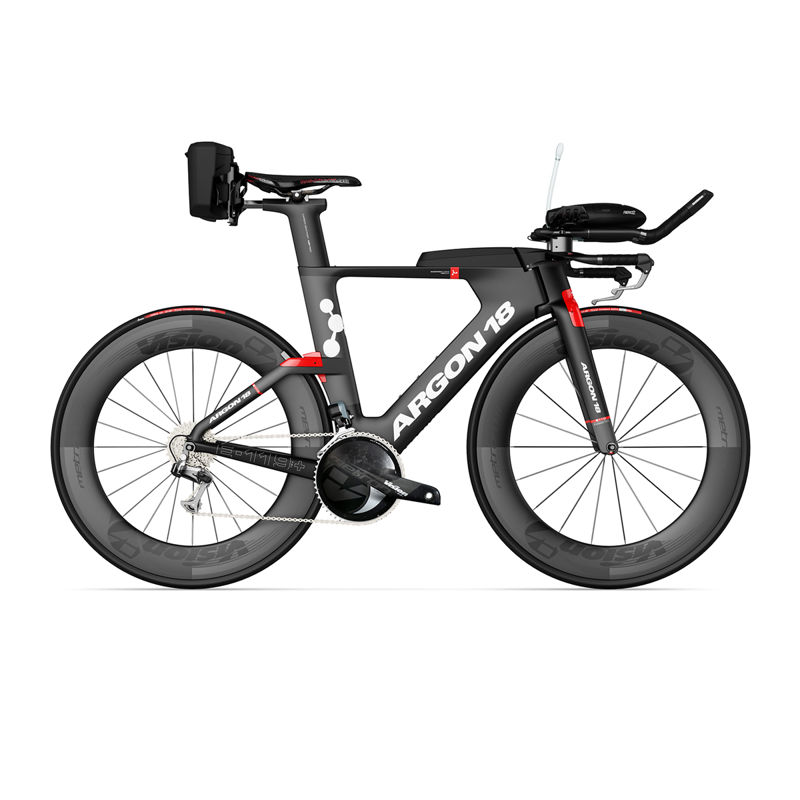

2019 Argon18 E119 Tri+ geometry
Full frame geometry for the 2019 Argon18 E119 Tri+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 560 | 415 | 78 | 72 | 60 | 491 | 455 | 715 | 75 | 405 | 965 |
| S | 670 | 425 | 78 | 72 | 70 | 503 | 502 | 754 | 75 | 405 | 978 |
| M | 685 | 435 | 78 | 72 | 86 | 517 | 516 | 768 | 75 | 405 | 993 |
| L | 710 | 440 | 78 | 72 | 112 | 527 | 542 | 795 | 75 | 405 | 1007 |
| XL | 735 | 450 | 78 | 72 | 141 | 544 | 570 | 823 | 75 | 405 | 1028 |
All measurements in millimetres unless marked (°) for angles.
