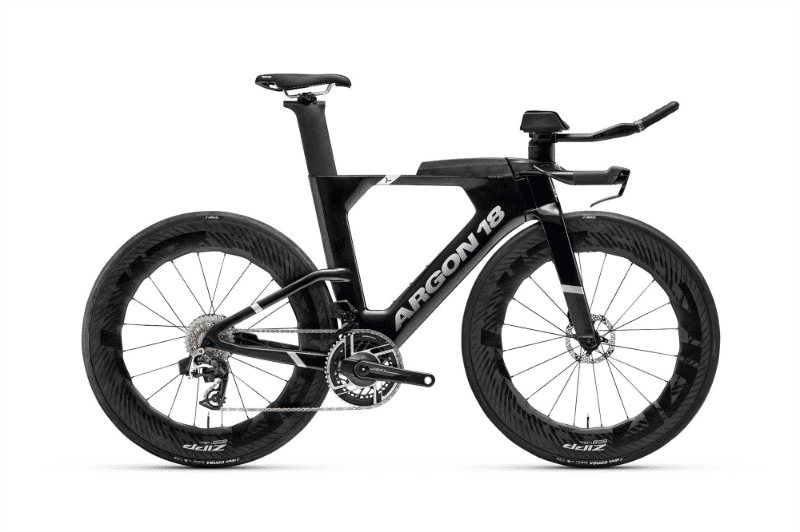

2025 Argon18 E119 Tri+ Disc geometry
Full frame geometry for the 2025 Argon18 E119 Tri+ Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 47-50 | 573 | 414 | 78 | 72 | 60 | 491 | 455 | 726 | 73 | 413 | 974 |
| S 51-53 | 583 | 424 | 78 | 72 | 70 | 505 | 502 | 765 | 73 | 413 | 988 |
| M 54-56 | 598 | 434 | 78 | 72 | 86 | 518 | 517 | 780 | 73 | 413 | 1003 |
| L 57-59 | 623 | 444 | 78 | 72 | 113 | 533 | 542 | 805 | 73 | 413 | 1021 |
| XL 60-62 | 653 | 454 | 78 | 72 | 144 | 549 | 573 | 832 | 73 | 413 | 1041 |
All measurements in millimetres unless marked (°) for angles.
