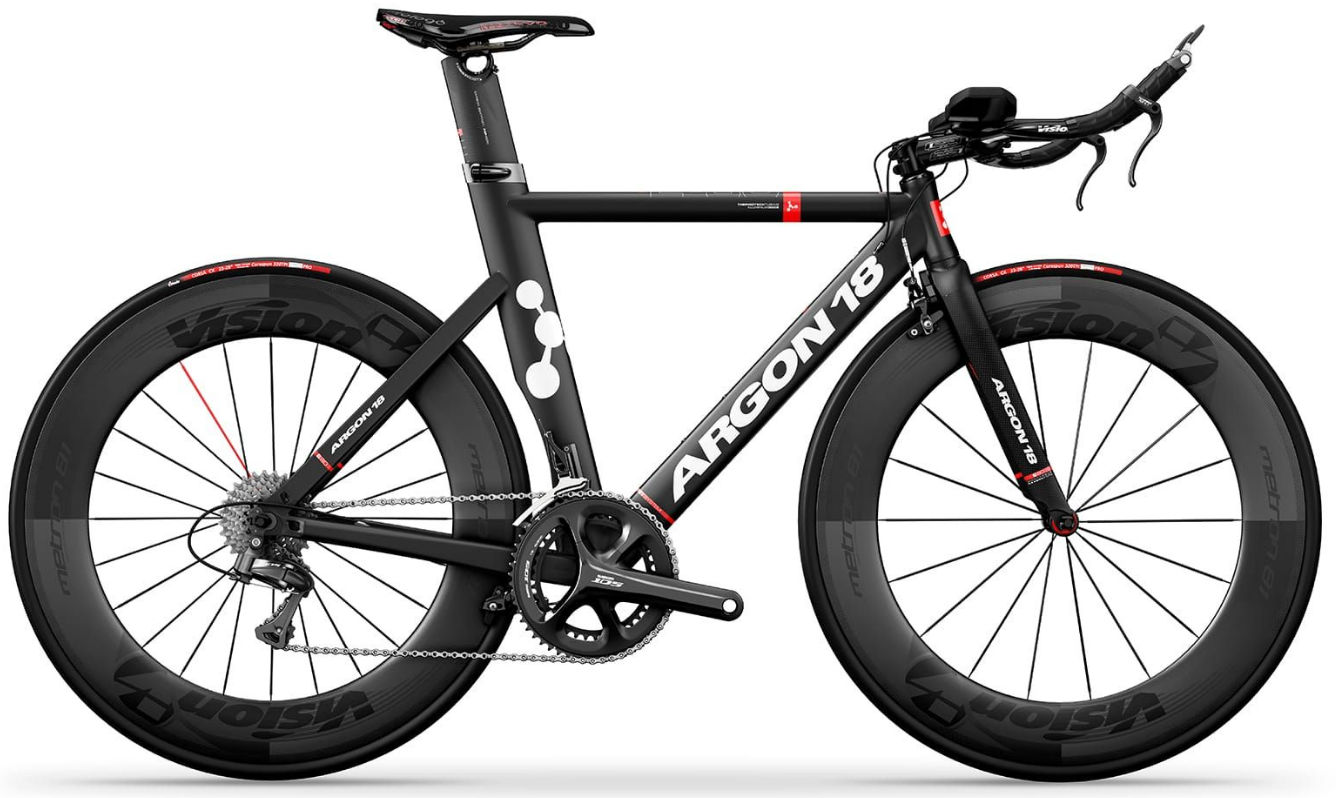

2014 Argon18 E-80 MKIII geometry
Full frame geometry for the 2014 Argon18 E-80 MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 488 | 398 | 76 | 72.5 | 85 | 520 | 691 | 70 | 579 | 400 | 969 |
| S | 498 | 411 | 76 | 72.5 | 95 | 535 | 748 | 70 | 595 | 400 | 985 |
| M | 516 | 416 | 76 | 72.5 | 114 | 545 | 766 | 70 | 605 | 400 | 995 |
| L | 541 | 425 | 76 | 72.5 | 140 | 560 | 791 | 70 | 623 | 400 | 1013 |
All measurements in millimetres unless marked (°) for angles.
