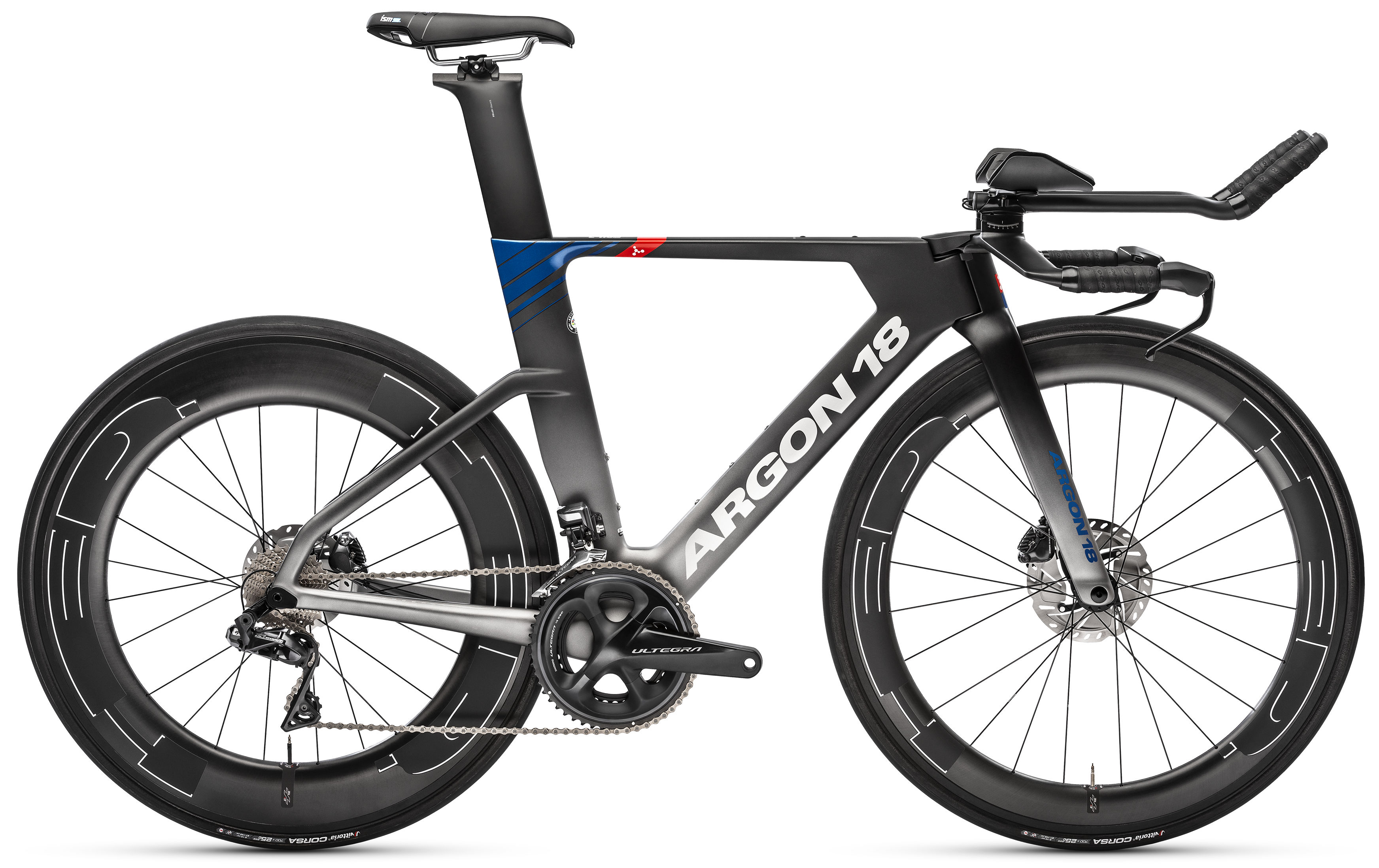

2019 Argon18 E-118 Tri+ geometry
Full frame geometry for the 2019 Argon18 E-118 Tri+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 460 | 394 | 78 | 72 | 49 | 492 | 461 | 718 | 70 | 574 | 413 | 977 | 43 |
| S | 471 | 404 | 78 | 72 | 60 | 504 | 500 | 754 | 70 | 587 | 413 | 990 | 43 |
| M | 486 | 414 | 78 | 72 | 76 | 517 | 516 | 770 | 70 | 602 | 413 | 1005 | 43 |
| L | 513 | 419 | 78 | 72 | 104 | 528 | 546 | 795 | 70 | 616 | 413 | 1019 | 43 |
All measurements in millimetres unless marked (°) for angles.
