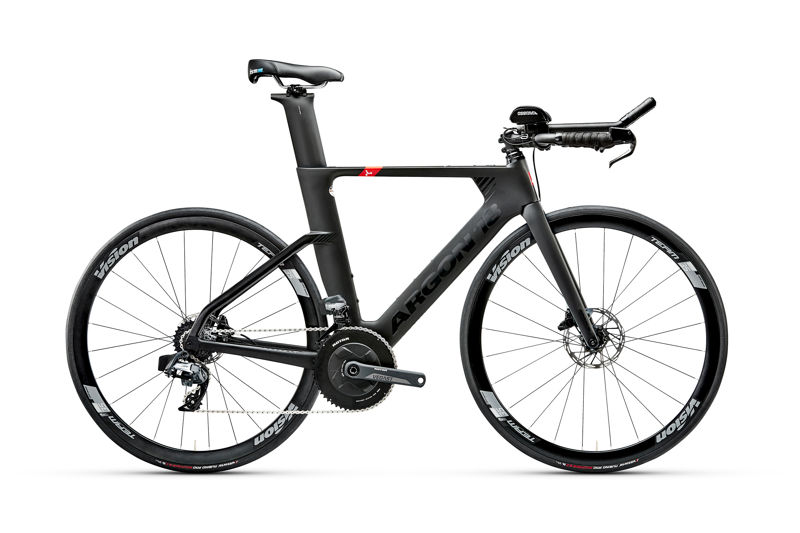

2019 Argon18 E-117 Tri Disc geometry

Name: 2019 Argon18 E-117 Tri Disc
Brand: Argon18

Full frame geometry for the 2019 Argon18 E-117 Tri Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)
XS 3D-0	491	385	78	72	84	489	720	75	570	413	963
S 3D-0	501	395	78	72	95	501	752	75	583	413	976
XS 3D-15	505	380	78	72	84	489	720	75	570	413	963
XS 3D-25	514	377	78	72	84	489	720	75	570	413	963
S 3D-15	515	390	78	72	95	501	752	75	583	413	976
M 3D-0	516	405	78	72	111	514	767	75	598	413	991
S 3D-25	525	387	78	72	95	501	752	75	583	413	976
M 3D-15	530	400	78	72	111	514	767	75	598	413	991
M 3D-25	540	397	78	72	111	514	767	75	598	413	991
L 3D-0	543	409	78	72	139	525	797	75	611	413	1004
L 3D-15	557	404	78	72	139	525	797	75	611	413	1004
L 3D-25	567	401	78	72	139	525	797	75	611	413	1004
XL 3D-0	568	422	78	72	170	545	808	75	633	413	1027
XL 3D-15	583	417	78	72	170	545	808	75	633	413	1027
XL 3D-25	592	414	78	72	170	545	808	75	633	413	1027

All measurements in millimetres unless marked (°) for angles.
