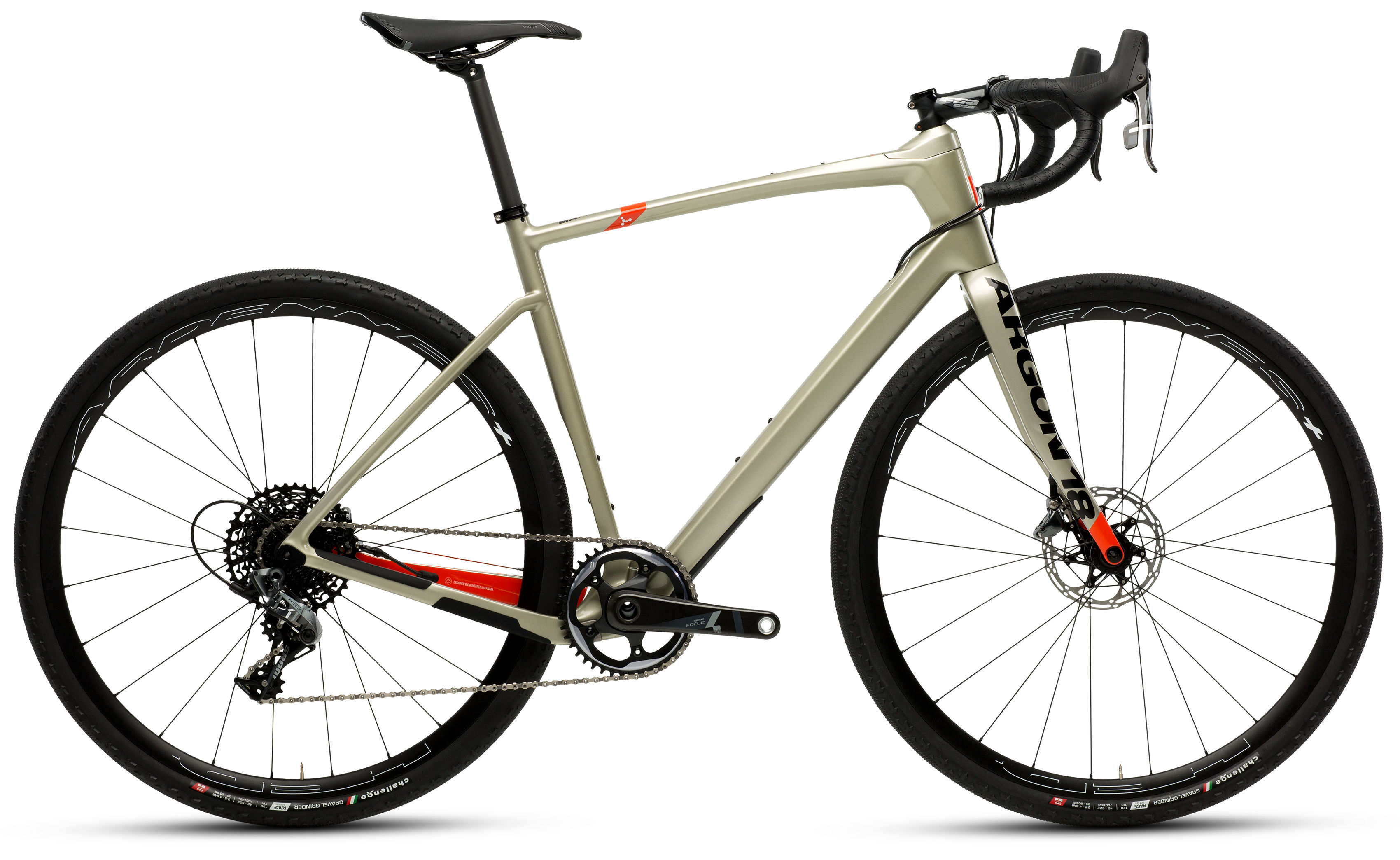

2018 Argon18 Dark Matter geometry

Name: 2018 Argon18 Dark Matter
Brand: Argon18

Full frame geometry for the 2018 Argon18 Dark Matter, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
XXS 3D-0	530	356	75.5	69.5	120	492	420	701	70	590	428	1008	54	76
XXS 3D-15	544	351	75.5	69.5	135	492	420	701	70	590	428	1008	54	76
XS 3D-0	550	367	74.9	71	135	513	450	729	70	593	428	1011	54	66
XXS 3D-30	558	346	75.5	69.5	150	492	420	701	70	590	428	1008	54	76
XS 3D-15	564	362	74.9	71	150	513	450	729	70	593	428	1011	54	66
S 3D-0	570	377	74.3	71.4	154	534	485	760	70	606	428	1024	54	64
XS 3D-30	578	357	74.9	71	165	513	450	729	70	593	428	1011	54	66
S 3D-15	584	372	74.3	71.4	169	534	485	760	70	606	428	1024	54	64
M 3D-0	590	387	73.7	72	171	556	520	791	70	611	428	1030	49	65
S 3D-30	598	367	74.3	71.4	184	534	485	760	70	606	428	1024	54	64
M 3D-15	604	382	73.7	72	186	556	520	791	70	611	428	1030	49	65
L 3D-0	610	397	73.1	72	192	579	555	821	70	628	428	1046	49	65
M 3D-30	619	378	73.7	72	201	556	520	791	70	611	428	1030	49	65
L 3D-15	624	392	73.1	72	207	579	555	821	70	628	428	1046	49	65
XL 3D-0	635	407	72.5	72.5	216	603	590	852	70	640	428	1059	49	62
L 3D-30	639	388	73.1	72	222	579	555	821	70	628	428	1046	49	65
XL 3D-15	649	402	72.5	72.5	231	603	590	852	70	640	428	1059	49	62
XL 3D-30	664	398	72.5	72.5	246	603	590	852	70	640	428	1059	49	62

All measurements in millimetres unless marked (°) for angles.
