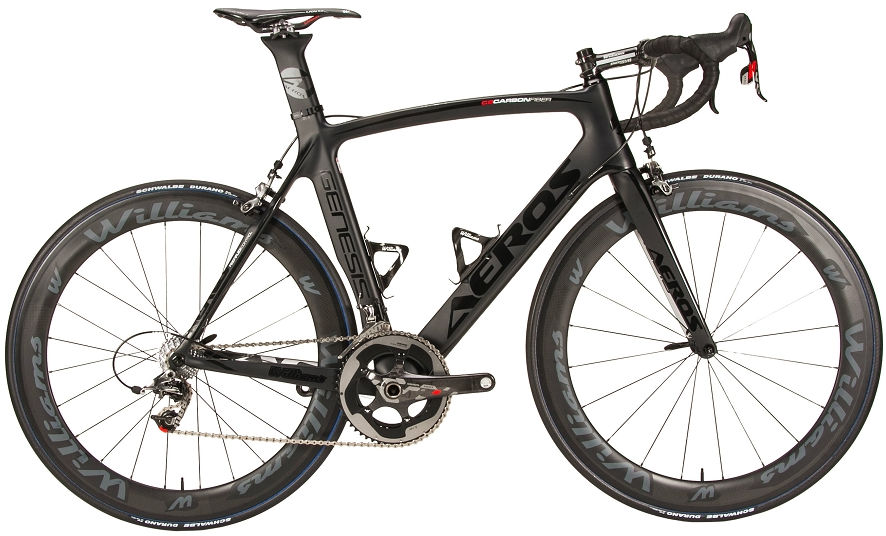

2014 Aeros Genesis geometry
Full frame geometry for the 2014 Aeros Genesis, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/46 | 501 | 371 | 75 | 70.5 | 110 | 505 | 460 | 67 | 574 | 970 | 43 | 73 |
| S/49 | 515 | 382 | 75 | 72 | 120 | 520 | 490 | 67 | 577 | 972 | 43 | 63 |
| M/52 | 538 | 386 | 74.5 | 73 | 140 | 535 | 520 | 67 | 579 | 974 | 43 | 57 |
| L/55 | 563 | 388 | 73.5 | 73 | 170 | 555 | 550 | 64 | 589 | 986 | 43 | 57 |
| XL/58 | 583 | 402 | 73 | 73 | 190 | 580 | 580 | 64 | 609 | 1005 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
