2025 3T · RD

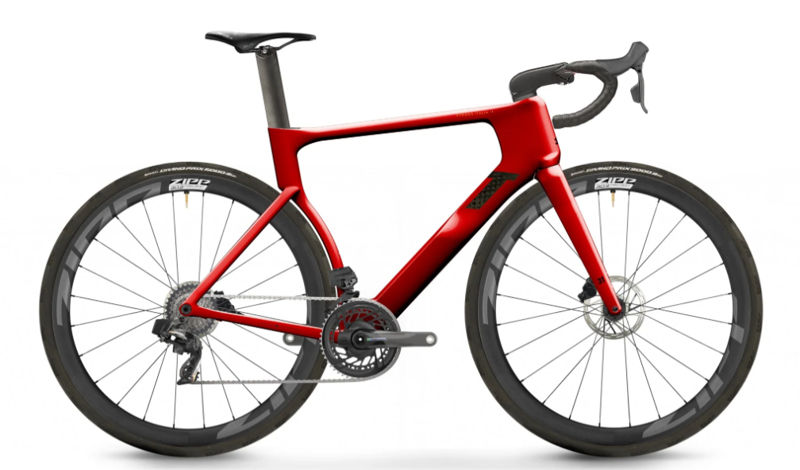

2025 3T Strada Italia geometry
Full frame geometry for the 2025 3T Strada Italia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 532 | 369 | 72.5 | 71 | 143 | 537 | 496 | 75 | 596 | 408 | 991 |
| 54 | 554 | 380 | 72.5 | 72.7 | 159 | 555 | 520 | 72.5 | 587 | 408 | 983 |
| 56 | 574 | 388 | 72.5 | 72.7 | 179 | 569 | 537 | 72.5 | 601 | 408 | 997 |
| 58 | 594 | 396 | 72.5 | 72.7 | 203 | 583 | 555 | 70 | 615 | 408 | 1013 |
All measurements in millimetres unless marked (°) for angles.
