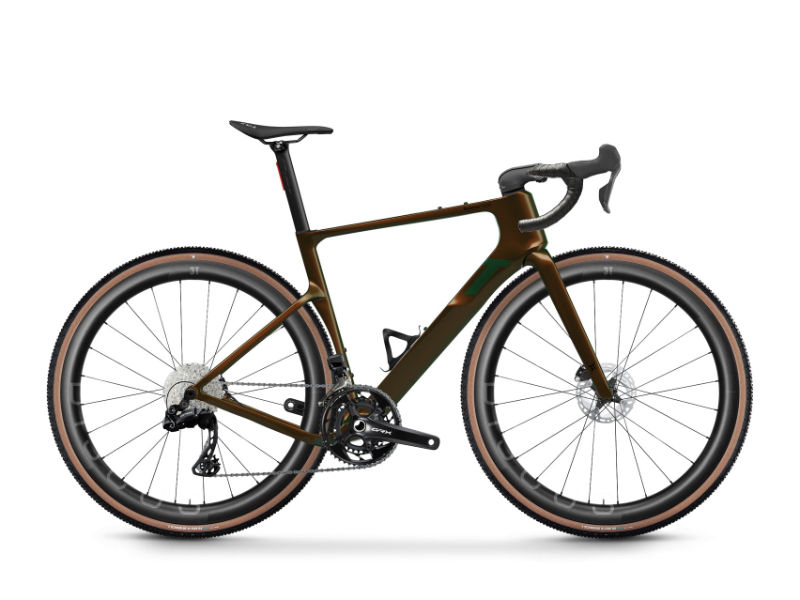

2025 3T Racemax 2 Italia geometry
Full frame geometry for the 2025 3T Racemax 2 Italia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 547 | 367 | 74 | 70.5 | 138 | 522 | 463 | 79 | 609 | 420 | 1017 |
| M | 569 | 377 | 74 | 71.5 | 152 | 538 | 491 | 79 | 607 | 420 | 1015 |
| L | 589 | 385 | 74 | 71.5 | 173 | 552 | 510 | 79 | 622 | 420 | 1029 |
| XL | 609 | 393 | 74 | 71.5 | 197 | 566 | 537 | 76 | 636 | 420 | 1045 |
All measurements in millimetres unless marked (°) for angles.
